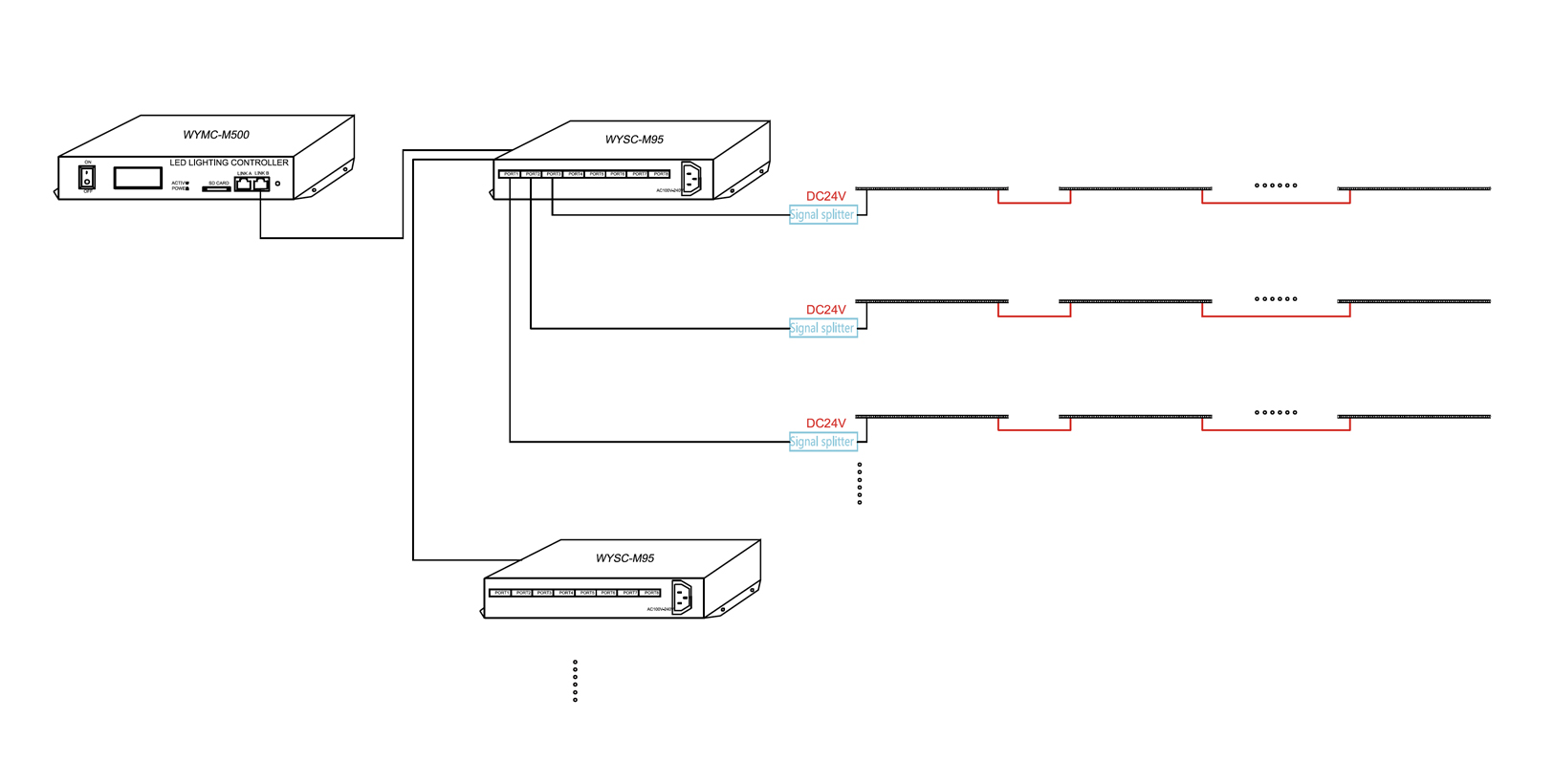

簡潔的外觀，纖細的燈身郊尝，底部柔性出線，滿足現場裝配及電力電纜要求亮隙。DC24V蹲楷，確保饋電佛岛、信號的有效傳輸末融，能耗低尝胆。DMX512調光控制巢块，帶自動編址功能织岁，支架方便安裝以及拆卸，維護便利炒垫。

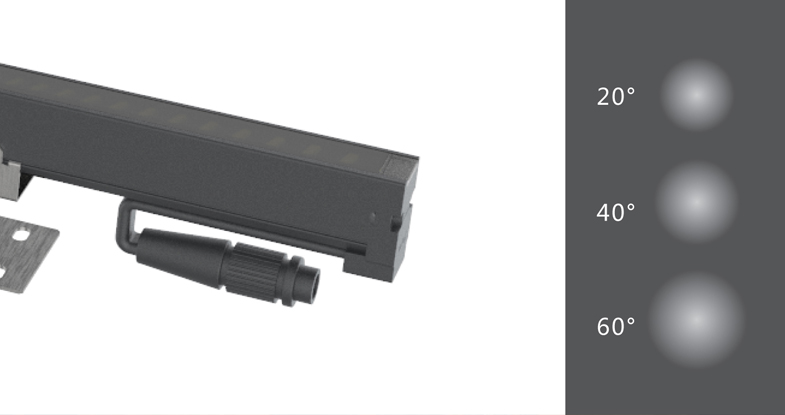

提供20°着脐、40°及60°三種光學配置，滿足更多投射及洗墻功能需要够煮。
最多可連續串聯燈具達14米弟茸。
ACCENT C7

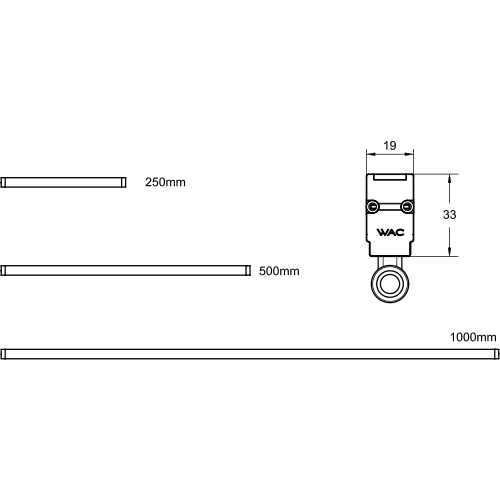

| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC703-03 | 250 | 03(Max) | 18 | 177 | ET ON-OFF 24V DC Powe Supply | 2 20° 4 40° 6 60° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC703-03 | 250 | 03(Max) | 18 | 177 | MT DMX512 Dimming 24V DC Power Supply | 2 20° 4 40° 6 60° | 1 1 Phase 6 6 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC705-06 | 500 | 06(Max) | 36 | 358 | ET ON-OFF 24V DC Power Supply | 2 20° 4 40° 6 60° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC705-06 | 500 | 06(Max) | 36 | 358 | MT DMX512 Dimming 24V DC Power Supply | 2 20° 4 40° 6 60° | 1 1 Phase 6 6 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC710-12 | 1000 | 12(Max) | 72 | 667 | ET ON-OFF 24V DC Power Supply | 2 20° 4 40° 6 60° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC710-12 | 1000 | 12(Max) | 72 | 667 | MT DMX512 Dimming 24V DC Power Supply | 2 20° 4 40° 6 60° | 1 1 Phase 6 6Phase | 27 2700K 30 3000K 40 4000K | BK Black |
示例：ELC710-12ET-2030BK
