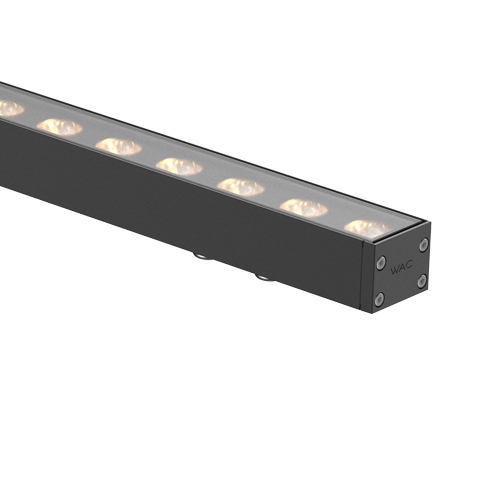

提供對稱和非對稱配光可選周荐，燈具兩側無逸散光斑，LED 等間距排布，燈具拼接是無暗區。 Graze 系列燈具從底部出線，特殊配置的 Gore 呼吸閥趴荸，可有效平衡內外部氣壓，以防冷凝水，符合 LEED 戶外照明功耗設計的要求簇抑。

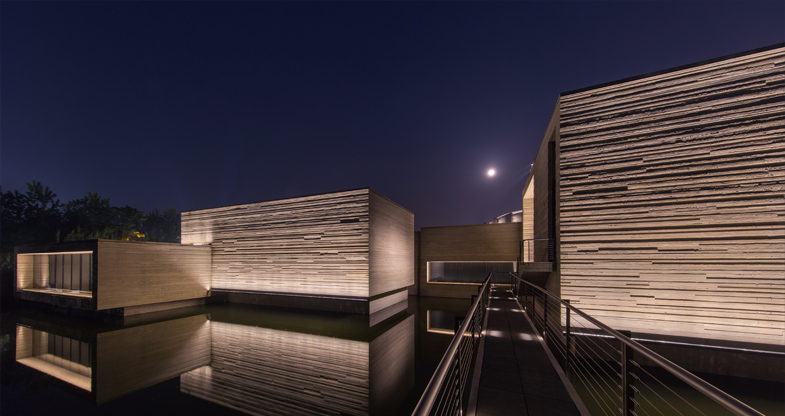

木心美術館

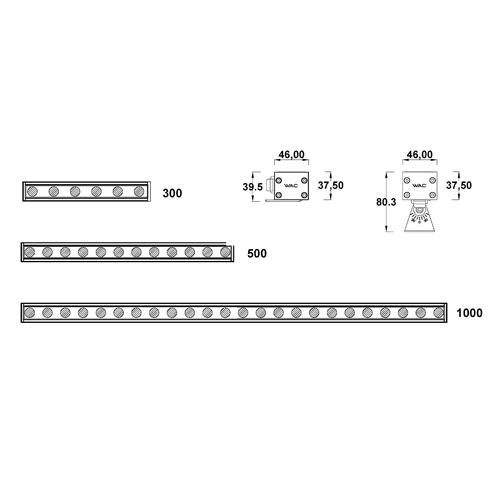

| Model | Length (mm) | Power | LEDs(Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS203-14 | 300 | 14(Max) | 6 | 949 | ET ON-OFF 24V DC Poower Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | V 5° S 9° 1 17° 2 22° 3 33° 5 51° E 9° x 15° G 15° x 43° | B Bottom S Side | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power | LEDs(Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS205-28 | 500 | 28(Max) | 12 | 1898 | ET ON-OFF 24V DC Poower Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | V 5° S 9° 1 17° 2 22° 3 33° 5 51° E 9° x 15° G 15° x 43° | B Bottom S Side | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power | LEDs(Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS210-56 | 1000 | 56(Max) | 24 | 3795 | ET ON-OFF 24V DC Poower Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | V 5° S 9° 1 17° 2 22° 3 33° 5 51° E 9° x 15° G 15° x 43° | B Bottom S Side | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power | LEDs(Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS210-56 | 1000 | 56(Max) | 24 | 3795 | ET ON-OFF 24V DC Poower Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | V 5° S 9° 1 17° 2 22° 3 33° 5 51° E 9° x 15° G 15° x 43° | B Bottom S Side | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power | LEDs(Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS203-14 | 300 | 14(Max) | 6 | 515 | MT DMX512 Dimming 24V DC Power Supply | 1 19° 2 26° 3 39° 4 49° F 20° x 45° | B Bottom S Side | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) | BK Black |
| Model | Length (mm) | Power | LEDs(Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS205-28 | 500 | 28(Max) | 12 | 1030 | MT DMX512 Dimming 24V DC Power Supply | 1 19° 2 26° 3 39° 4 49° F 20° x 45° | B Bottom S Side | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) | BK Black |
| Model | Length (mm) | Power | LEDs(Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS210-56 | 1000 | 56(Max) | 24 | 2061 | MT DMX512 Dimming 24V DC Power Supply | 1 19° 2 26° 3 39° 4 49° F 20° x 45° | B Bottom S Side | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) | BK Black |
示例: ELS205-28MT-1BF3BK
