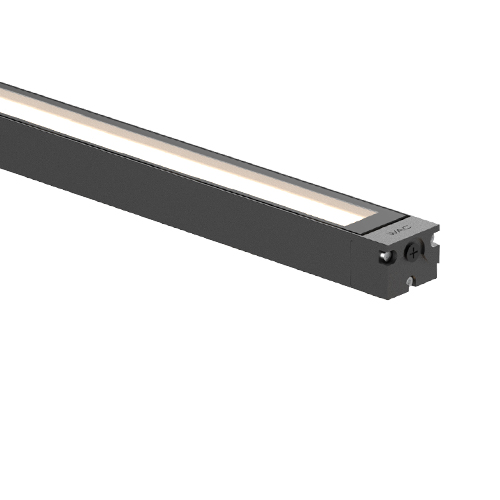

ELV103/ELV106/ELV109/ELV112 大功率線性燈具
燈具配備光效強，壽命長的高質量芯片以及獨特光學性能的透鏡幕柬，結合等間距排布設計絮商，保證了均勻的出光袁暗。燈具從側邊或底部出線憎材，特殊配置的 Gore 呼吸閥，可有效平衡內外部氣壓设凹，以防冷凝水碱工，符合 LEED 戶外照明功耗設計的要求。
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV103-07 | 300 | 07(Max) | 3 | 368 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV106-14 | 600 | 14(Max) | 6 | 748 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV109-21 | 900 | 21(Max) | 9 | 1088 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV112-28 | 1200 | 28(Max) | 12 | 1399 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
示例：ELV103-07MT-CS30-B
