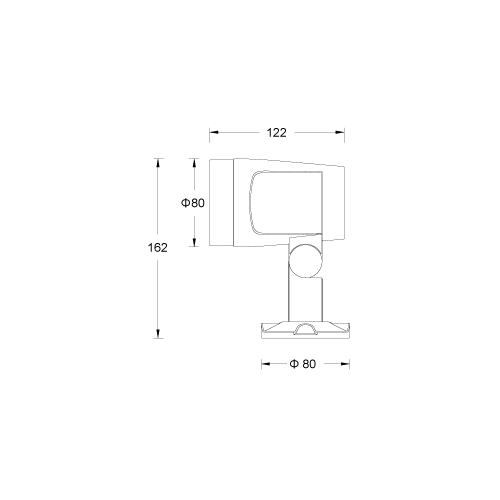

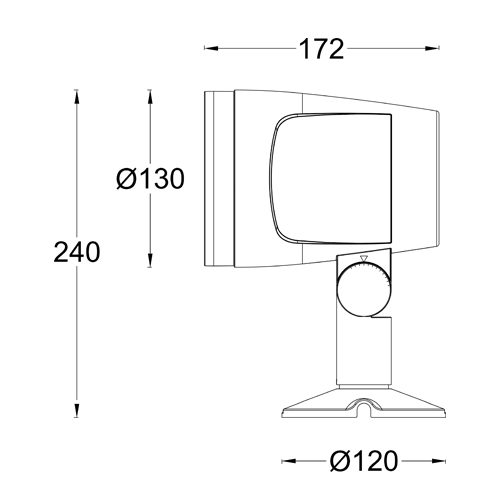

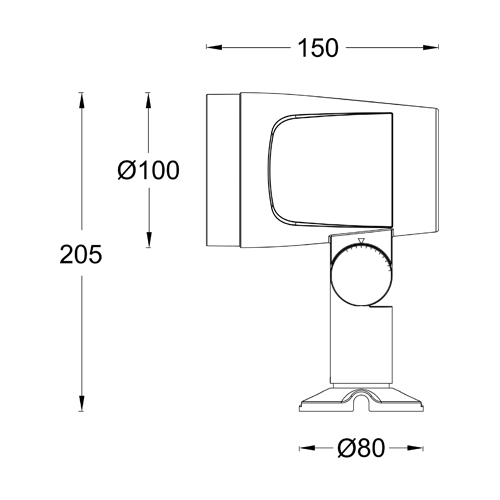

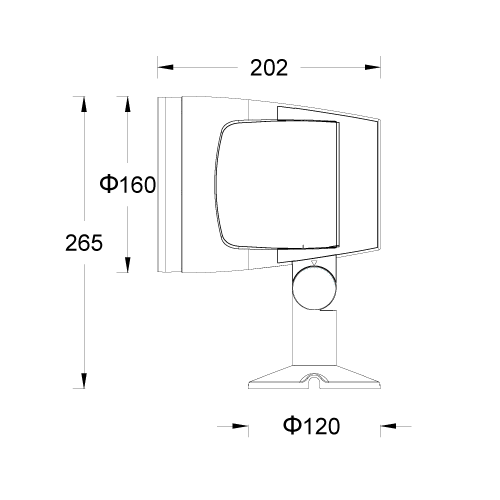

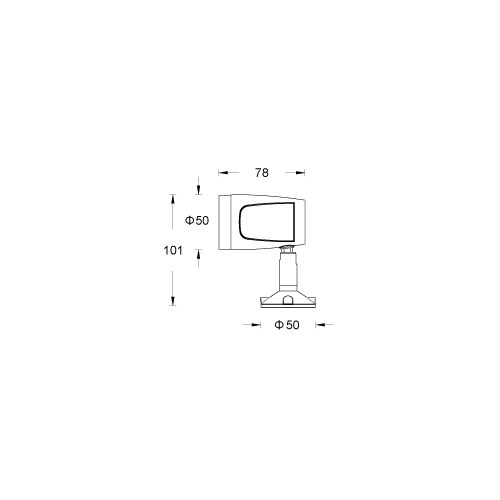

EP1TI 24VDC/Φ50 EP1NI/EP1SI/EP1MI/EP1LI/EP5MI 220VAC/Φ80/Φ100/Φ130/Φ160/Φ200

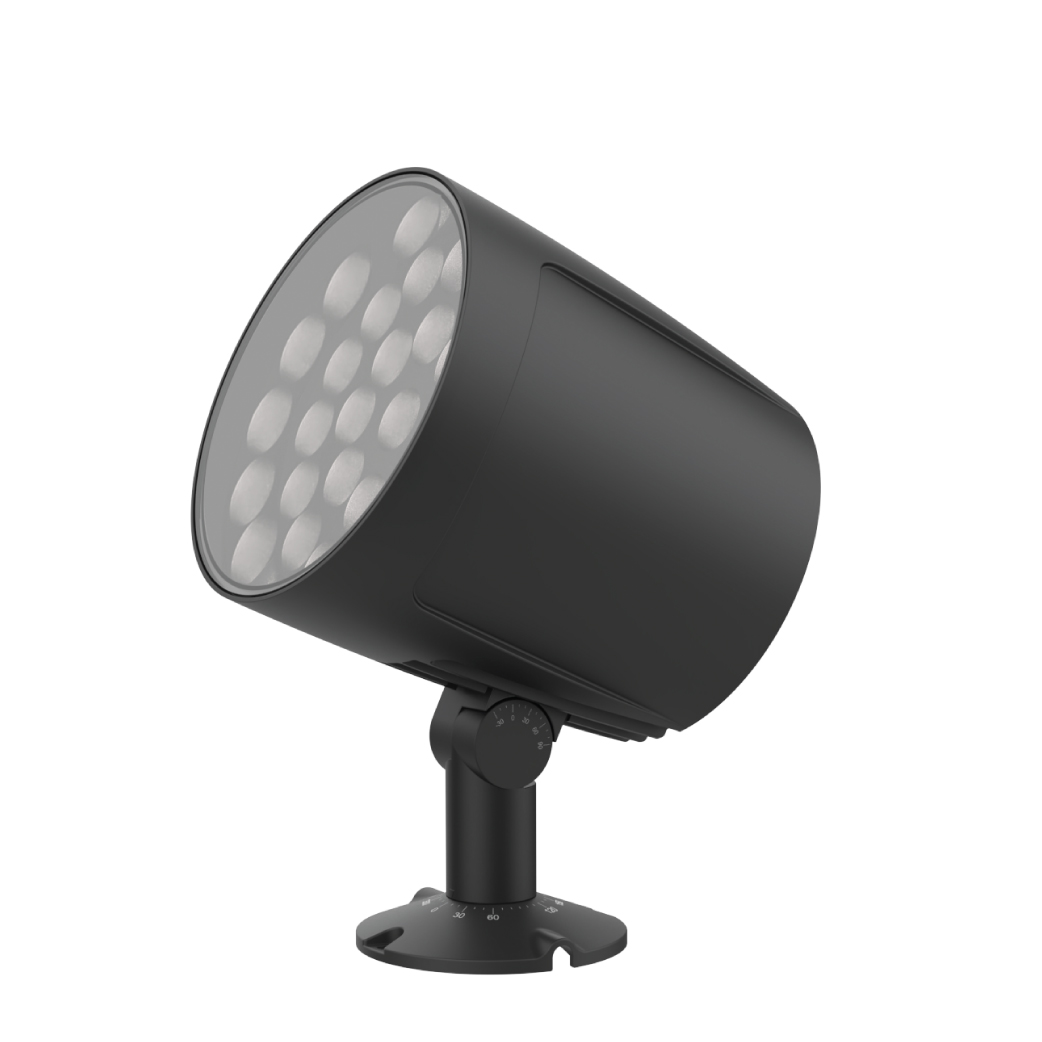

低調的輪廓設計與高性能的光學表現更突顯環境，PANTHER 系列燈具具有多種尺寸以及最新的 LED 技術。可以垂直與水平方向精確調節轉動安坏“齐可應用于建筑立面或景觀投射等場所眨攀。
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP1TI-03 | 3(Max) | 1 | 159 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° | 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP1NI-08 | 8(MAX) | 3 | 441 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 13° 2 22° 3 34° 5 50° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP1SI-19 | 19(MAX) | 7 | 1096 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 13° 2 22° 3 34° 5 50° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP1MI-29 | 29(MAX) | 12 | 1725 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 13° 2 22° 3 34° 5 50° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP1LI-49 | 49(MAX) | 18 | 2912 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 13° 2 22° 3 34° 5 50° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP5MI-65 | 65 65W(Max) | 18 | 4019 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | V 4° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP5MI-65 | 65 65W(Max) | 24 | 3954 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 10° 2 22° 3 33° 4 47° J 14° x 44° | 27 2700K 30 3000K 40 4000K | BK Black |
示例：EP1LI-49EL-S30BK
