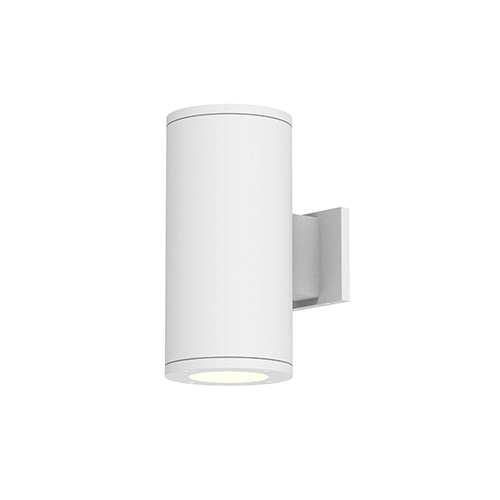

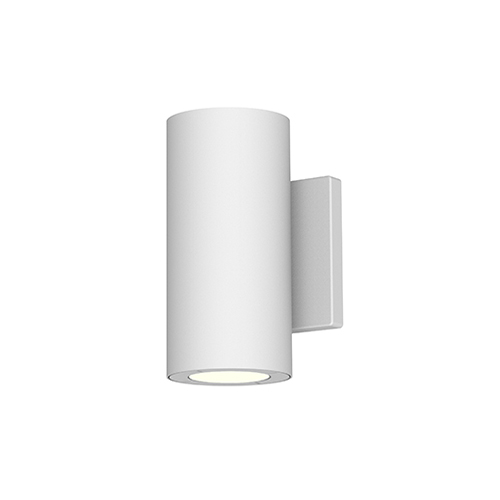

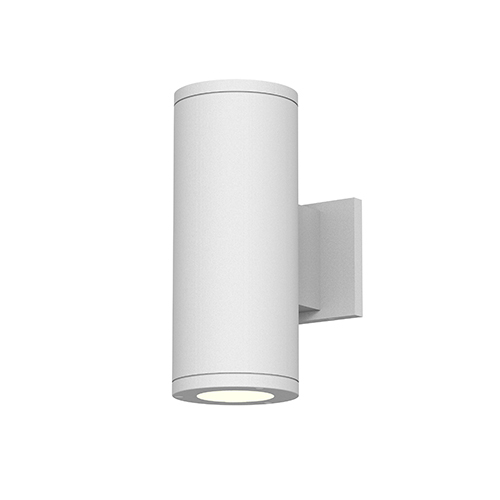

SLANA系列在建筑照明中更具有裝飾性川霞，采用壁式安裝空猜，雙向光型分布熊户，精巧細致的外觀和結構設計旁核，卓越的光學性能和靈活的人性化配件都能給用戶帶來完美的光環境體驗，適用于公共高空間的功能性照明疟丙。
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EW1N | D Double Directional | 32 2x12W(Max) | COB | 2 x 1172 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 14° 2 25° 3 35° A Away from the wall T Towards the wall | 30 3000K 40 4000K | WT White BK Black |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EW1S | D Double Directional | 54 2x25(Max) | COB | 2 x 2251 | EL ON-OFF 220V/AC Power Supply DL 0-10V Dimming 220V/AC Power Supply | 1 16° 2 21° 3 33° A Away from the wall T Towards the wall | 30 3000K 40 4000K | WT White BK Black |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EW1M | D Double Directional | 72 2x32(Max) | COB | 2 x 2783 | EL ON-OFF 220V/AC Power Supply DL 0-10V Dimming 220V/AC Power Supply | 1 16 2 30° 4 40° A Away from the wall T Towards the wall | 30 3000K 40 4000K | WT White BK Black |
示例: EW1MD-72EL-1130WT
