可做防霧或矮天花空間使用桶现。模組化設計付箩，現場可自由拆卸并更換反射器或安裝面框，實現多種規格及出光方式的自由切換狐怯。光學方面采用了全新的隱光技術，良好的防眩光性能及顏色一致性控制贪犁，具有舒適的出光颜肥。
| Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |

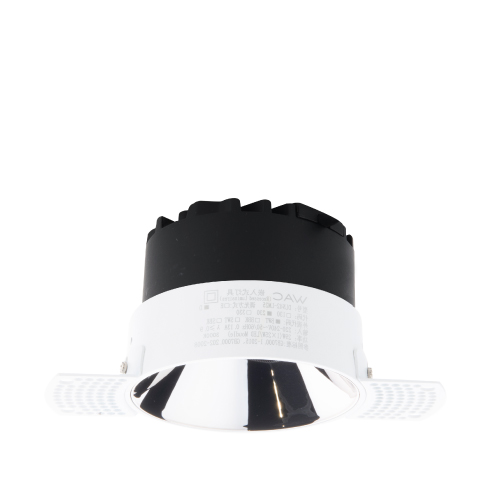

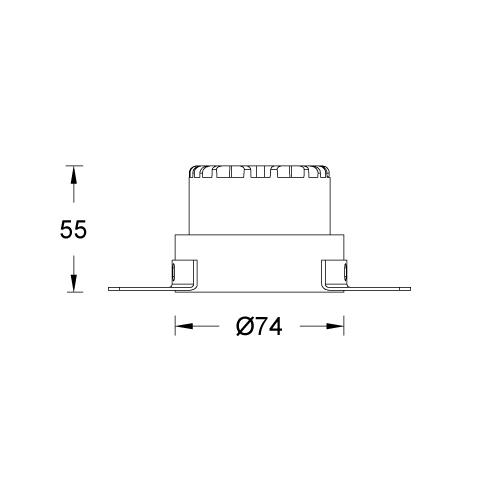

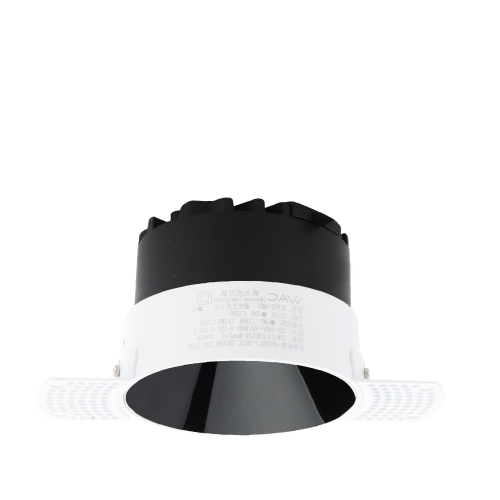

DLN Downlight N series | 3 3” | 4 Round Trimless
| LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10 Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 4 Round Trimless
| LM13 COB 13W | A DALI N No Driver | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |

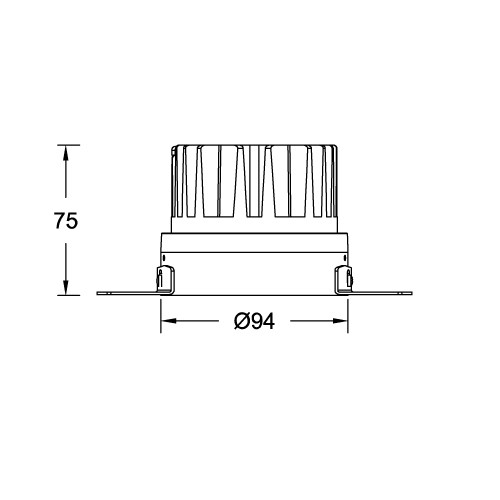

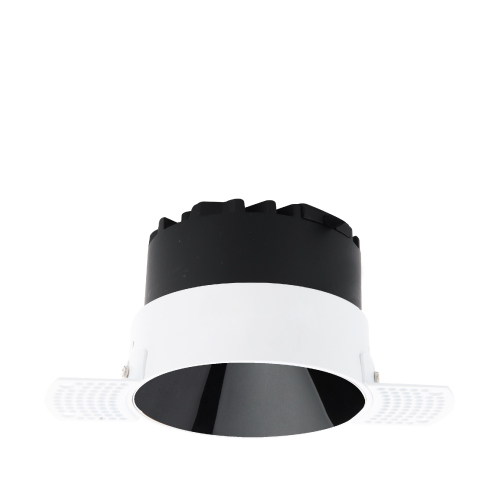

DLN Downlight N series | 4 4” | 4 Round Trimless
| LM08 COB 8W | E On-Off D 0-10 Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 4 Round Trimless
| LM13 COB 13W LM18 COB 18W LM25 COB 25W | E On-Off D 0-10 Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
示例：DLN34-LM07E-230SWT
注：8°、13°和18°出廠默認帶蜂窩格柵
