ELANA

DLG21/DLG31 2/3寸

下照 圓形 窄邊

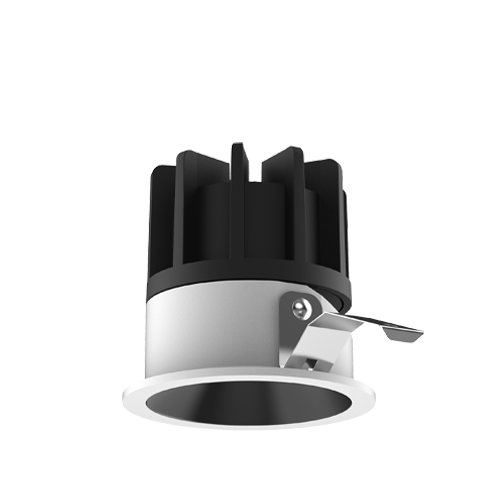

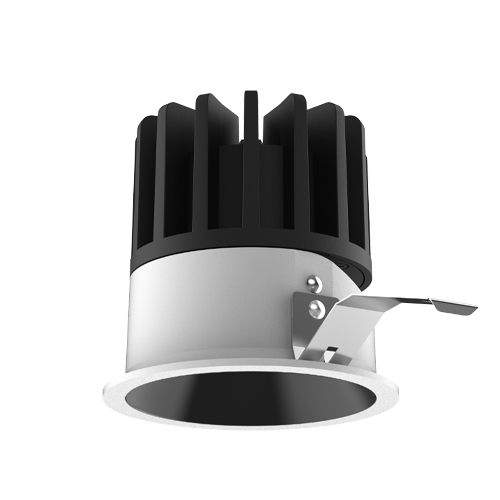

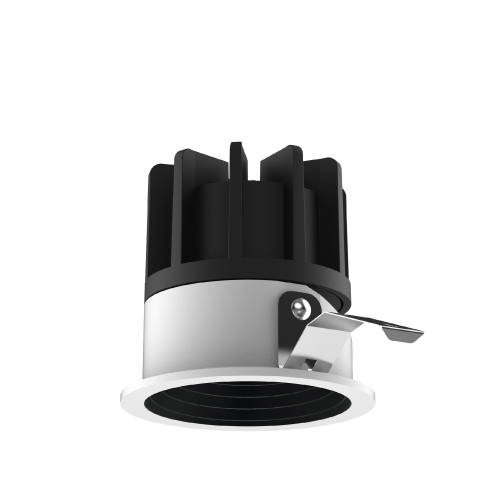

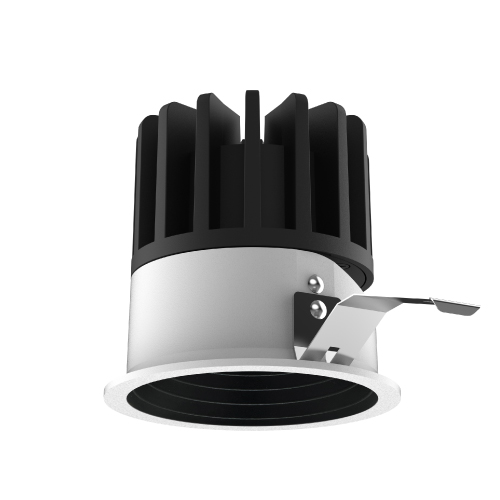

DLG21/DLG31 2/3寸

ELANA 系列 LED 窄邊嵌入式筒燈,安裝后和天花完美融合。良好的防眩光性能及顏色一致性控制授艰，具有舒適的出光效果享积，主要適用于酒店及會所 等室內場所.

產品特點

陽光金融中心大廈

產品規格

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLG

Downlight G series

2  2”

1 Round Trim

LM04 COB 4W

LM07 COB 7W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B Black

W White

S Specular

T Black Step

H White Step


WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLG

Downlight G series

2  2”

1 Round Trim

LM07 COB 7W

N No Driver

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B Black

W White

S Specular

T Black Step

H White Step

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLG

Downlight G series

3  3”

1 Round Trim

LM07 COB 7W

LM10 COB 10W

LM13 COB13W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B Black

W White

S Specular

T Black Step

H White Step

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLG

Downlight G series

3  3”

1 Round Trim

LM13 COB 13W

N No Driver

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B Black

W White

S Specular

T Black Step

H White Step

WT  White

BK   Black

示例：DLG31-LM10-E230SWT
