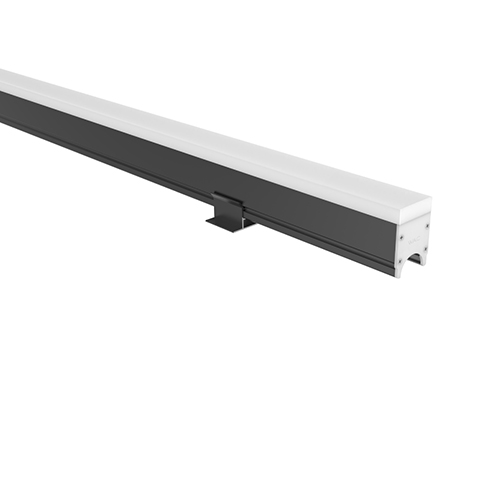

等間距排布設計保證了均勻的出光效果，無陰影怯路。符合 LEED 戶外照明功耗設計的要求息扶，整潔輕巧的外觀確保輕松裝配到外墻捏梯。配備柔性電纜谴疾，可自由選擇側面或底部出線泉互，燈具支持DMX512 調光控制墨林，帶自動編址功能巍沙；整燈IP66 的防護等級。
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| ELD203-04 | 250 | 4(Max) | 18 | 134 | ET ON-OFF 24V DC Power Supply | P 三面發光 | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| ELD205-08 | 500 | 8(Max) | 36 | 267 | ET ON-OFF 24V DC Power Supply | P 三面發光 | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| ELD210-16 | 1000 | 16(Max) | 72 | 534 | ET ON-OFF 24V DC Power Supply | P 三面發光 | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| ELD203-04 | 250 | 4(Max) | 18 | 134 | MT DMX512 Dimming 24V DC Power Supply | P 三面發光 | 1 1 Phase B 12 Phase | 27 2700K 30 3000K 40 4000K F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) CC Tunable White | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| ELD205-08 | 500 | 8(Max) | 36 | 267 | MT DMX512 Dimming 24V DC Power Supply | P 三面發光 | 1 1 Phase B 12 Phase | 27 2700K 30 3000K 40 4000K F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) CC Tunable White | BK Black |
| Model | Length(mm) | Power(W) | LEDs(Qty) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
| ELD210-16 | 1000 | 16(Max) | 72 | 534 | MT DMX512 Dimming 24V DC Power Supply | P 三面發光 | 1 1 Phase B 12 Phase | 27 2700K 30 3000K 40 4000K F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) CC Tunable White | BK Black |
示例：ELD210-16MT-P127BK
