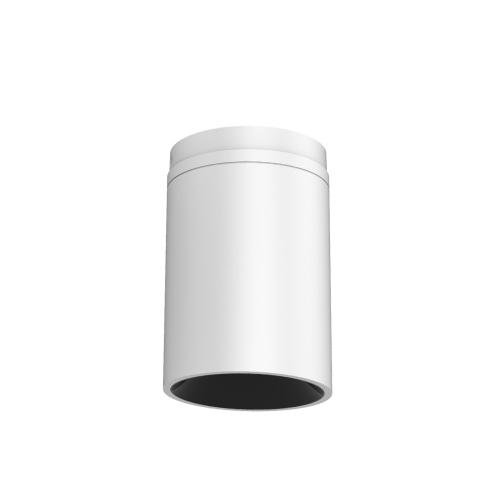

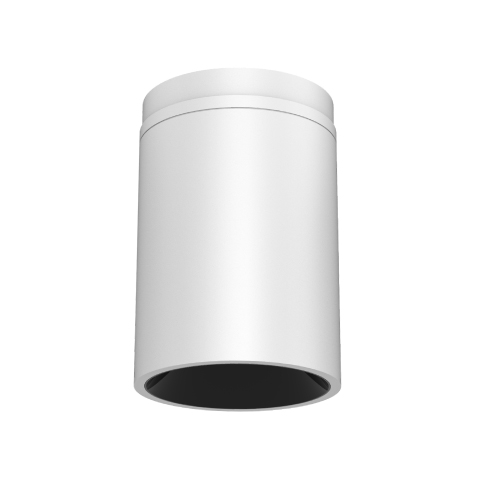

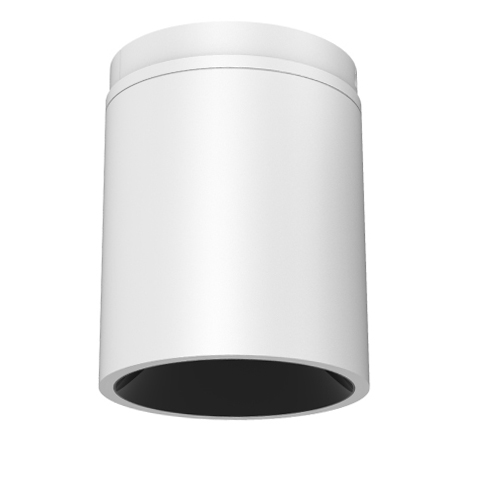

Slana Pro Fix 下照明裝筒燈译隘，整燈精致簡潔供撵，精巧細致的外觀和結構設計秉唇，采用吸頂安裝和吊桿安裝。卓越的光學性能祝鞍，在建筑照明中更具有裝飾性众琼， 主要適用于公共高空的功能性照明。

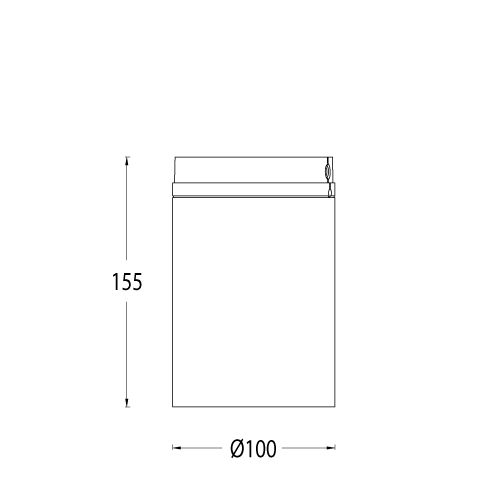

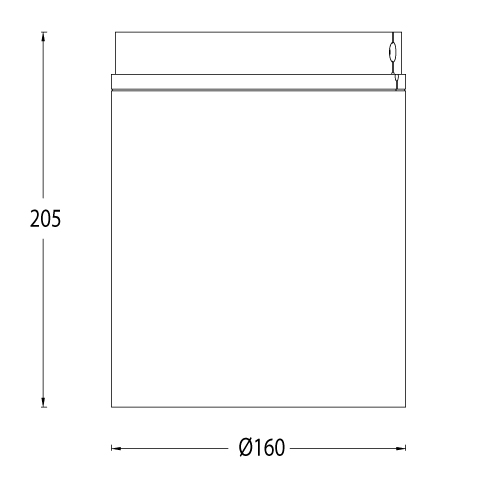

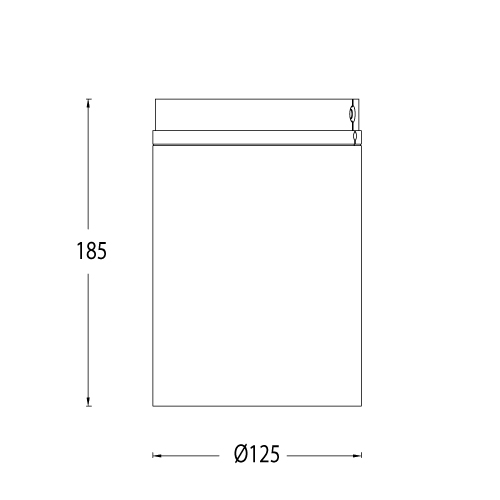

3/4/5 寸尺寸圖詳情

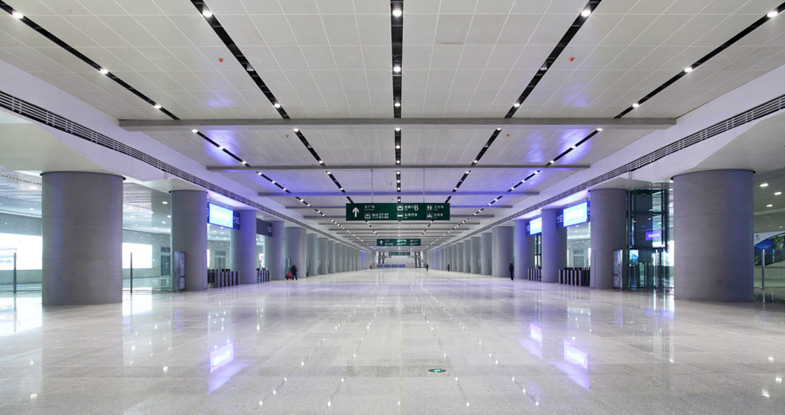

使用場景 一
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3N | F Fixed | 25 25W(Max) | COB | 2628 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3S | F Fixed | 33 33(Max) | COB | 3680 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3M | F Fixed | 43 43(Max) | COB | 4350 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 15° 2 24° 3 36° 5 50° | 30 3000K 40 4000K | B Black S Specular | WT White |
示例：ES3MF-43EL-130BWT
