PLANA PRO

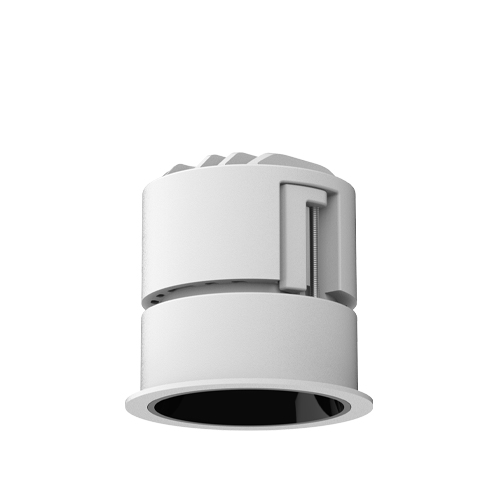

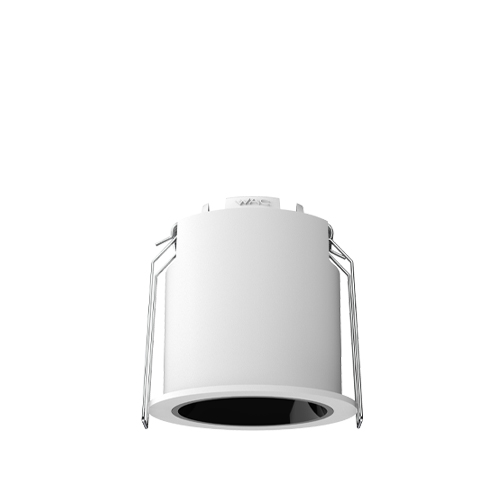

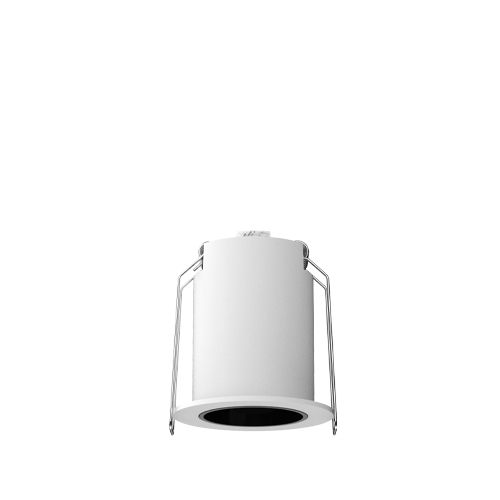

DLP13/DLP23/DLP33/DLP43/DLP53 1/2/3/4/5寸嵌入式筒燈

下照 圓形 單色

DLP13/DLP23/DLP33/DLP43/DLP53 1/2/3/4/5寸嵌入式筒燈

嵌入式筒燈的經典之作，業內首開先河的SUBROSA隱光技術救辖，帶來極致防眩效果漂辐。隨著技術的不斷發展創新弃揽，PLANA PRO系列不斷豐富及完善，全系1至5寸悦陋，功能全面覆蓋下照、調角、洗墻工斤。

產品特點

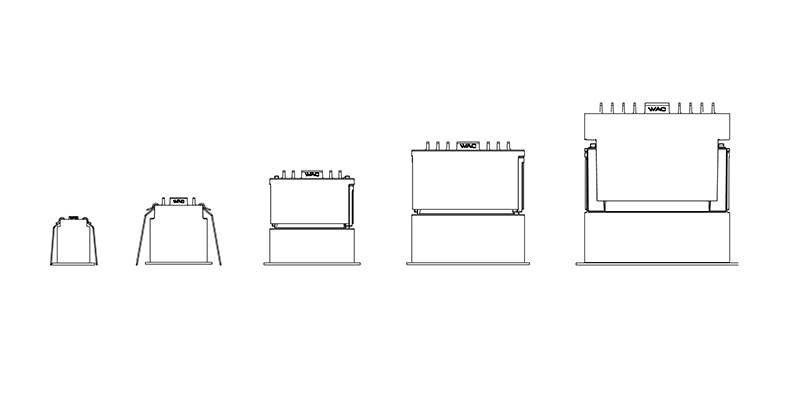

1至5寸，系列尺寸豐富

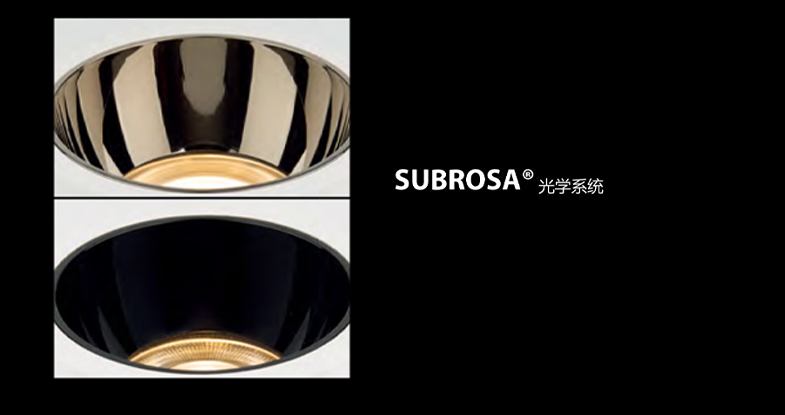

SUBROSA光學系統节猿，帶來極致視覺體驗

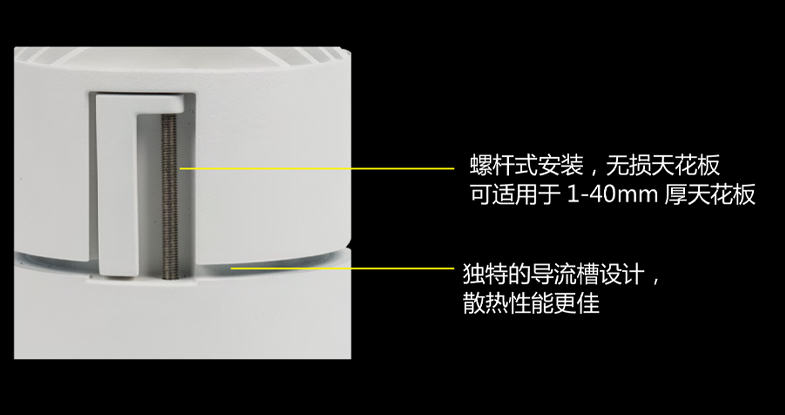

螺桿式安裝票从，無損天花

產品規格

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DLP

1 1”

3 Round Trim

LD02 LED 2W

E  On-Off

N  No Driver

27  2700K

30  3000K

40  4000K

S     8°

1     15°

2     24°

3     36°

5     50°

B  Black

S  Specular

WT White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLP

1 1”

3 Round Trim

LD06 COB 6W

E  ON-OFF

D  0-10V Dimming

N  No Driver

1  15°

2   24°

3   36°

27 2700K

30 3000K

40 4000K

B  Black

S  Specular



WT  White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DLP

2 2”

3 Round Trim



LD08 LED 8W

E  On-Off

D  0-10V Dimming

N  No Driver

27  2700K

30  3000K

40  4000K

1  15°

2  24°

3  36°

4  48°

B  Black

S  Specular

WT White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DLP

3 3”

3 Round Trim



LM13 COB13W

LM18 COB18W

E  On-Off

D  0-10V Dimming

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

1  18°

2  28°

3  38°

4  48°

5  58°

B  Black

S  Specular



WT  White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DLP

3 3”

3 Round Trim



LM18 COB 18W

N  No Driver

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

1  18°

2  28°

3  38°

4  48°

5  58°

B  Black

S  Specular



WT  White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DLP

4 4”

3 Round Trim

LM18 COB 18W

LM25 COB 25W

E  On-Off

D  0-10V Dimming

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

2  20°

3  30°

4  40°

5  50°

6  60°

B  Black

S  Specular

WT White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DLP

4 4”

3 Round Trim

LM25 COB 25W

N  No Driver

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

2  20°

3  30°

4  40°

5  50°

6  60°

B  Black

S Specular

WT White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DLP

5 5”

3 Round Trim

LM32 COB 32W

LM40 COB 40W

E  On-Off

D  0-10V Dimming

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

1  15°

2  24°

3  36°

B  Black

S  Specular

WT White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DLP

5 5”

3 Round Trim

LM40 COB 40W

N  No Driver

27 2700K

30  3000K

35  3500K

40  4000K

50  5000K

1  15°

2  24°

3  36°

B  Black

S  Specular

WT White

示例：DLP53-LM32E-302BWT
