BLOOM

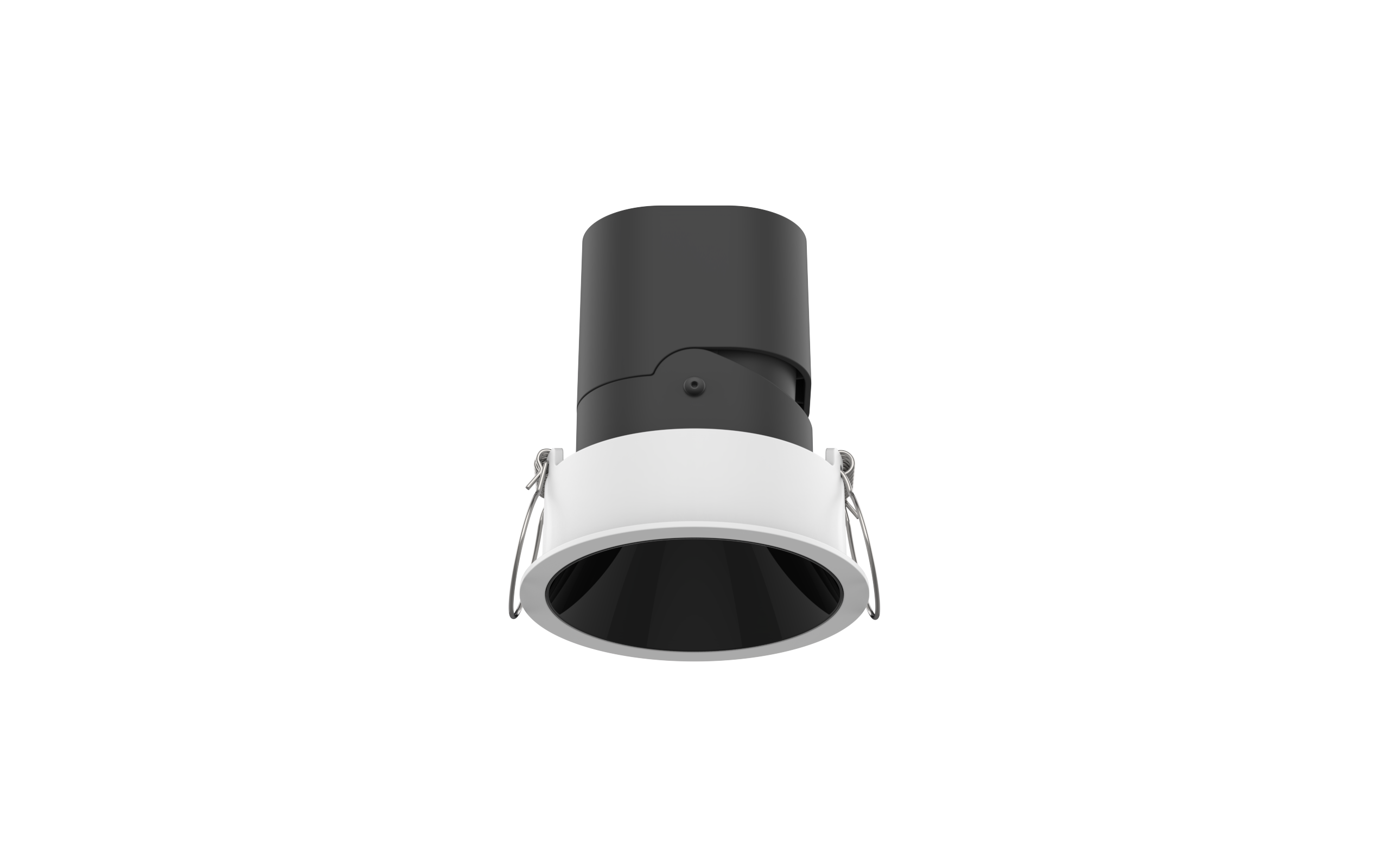

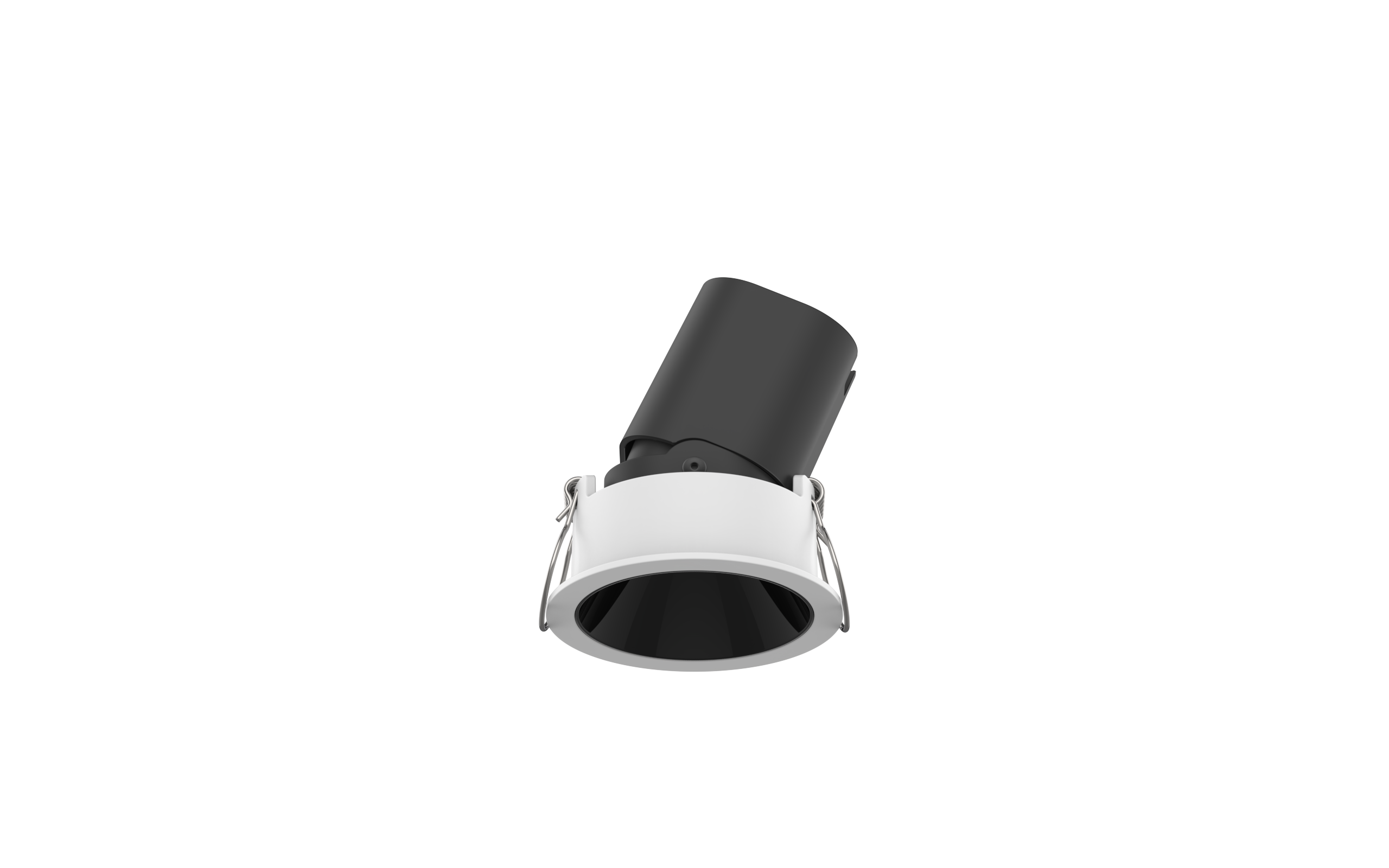

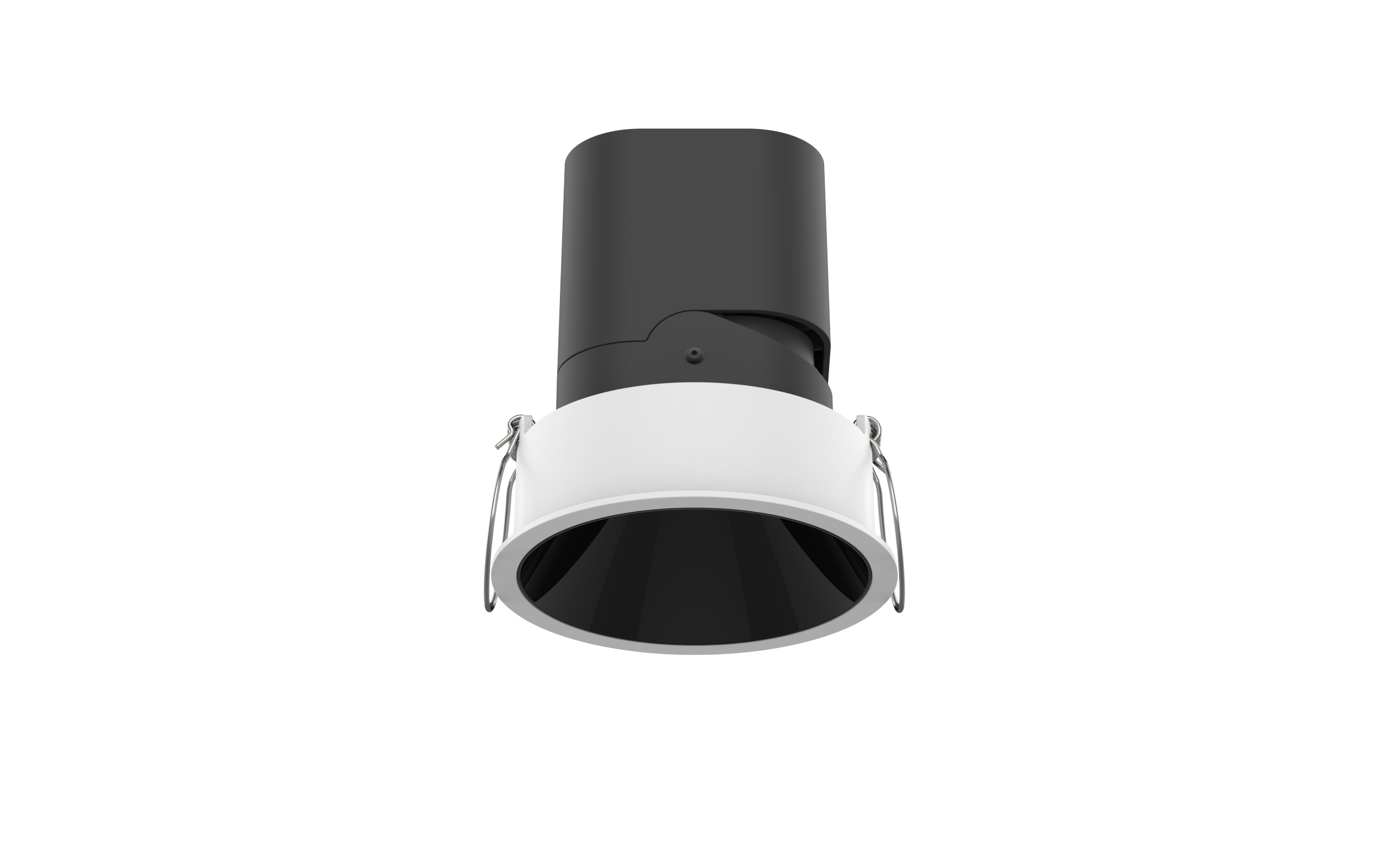

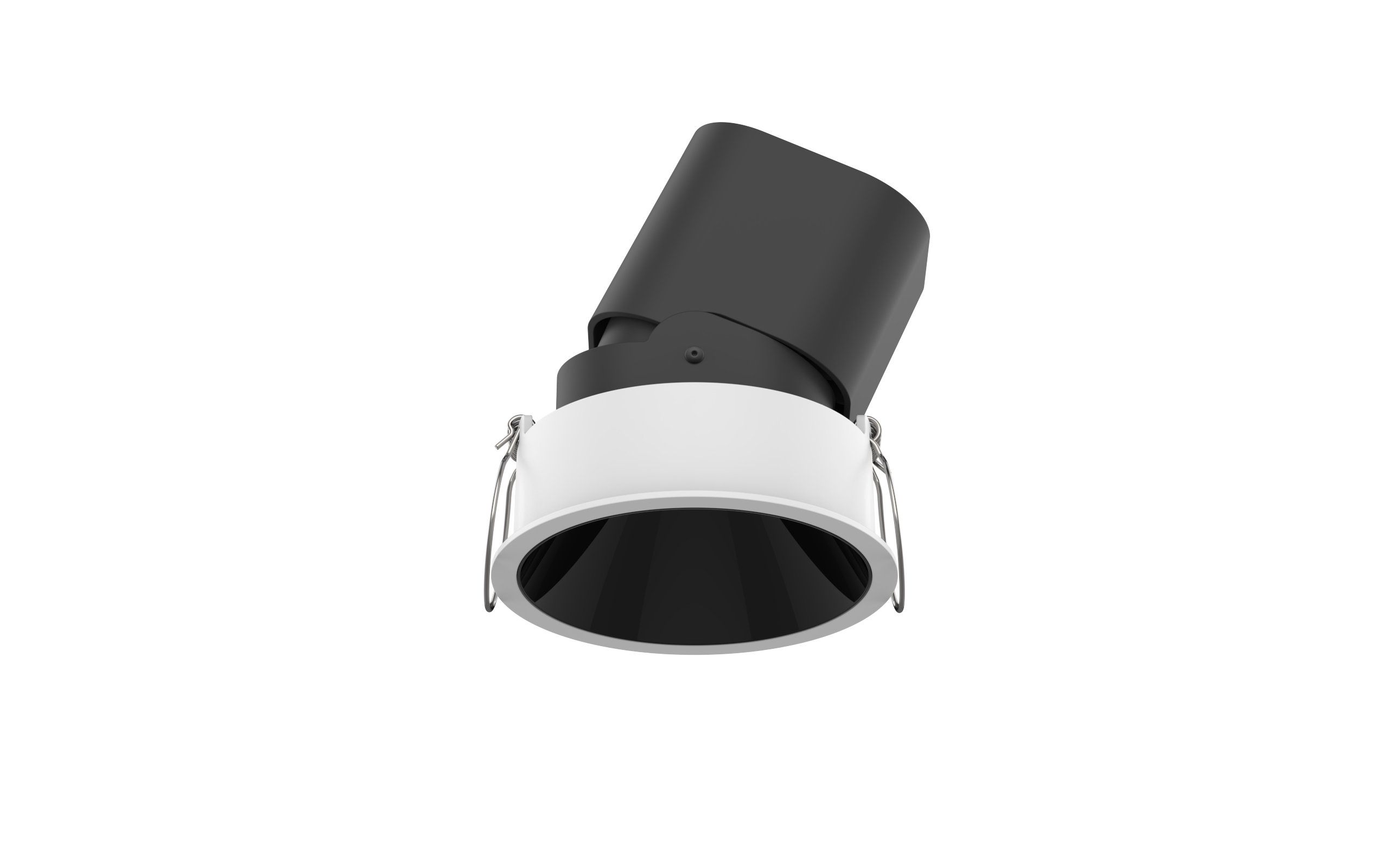

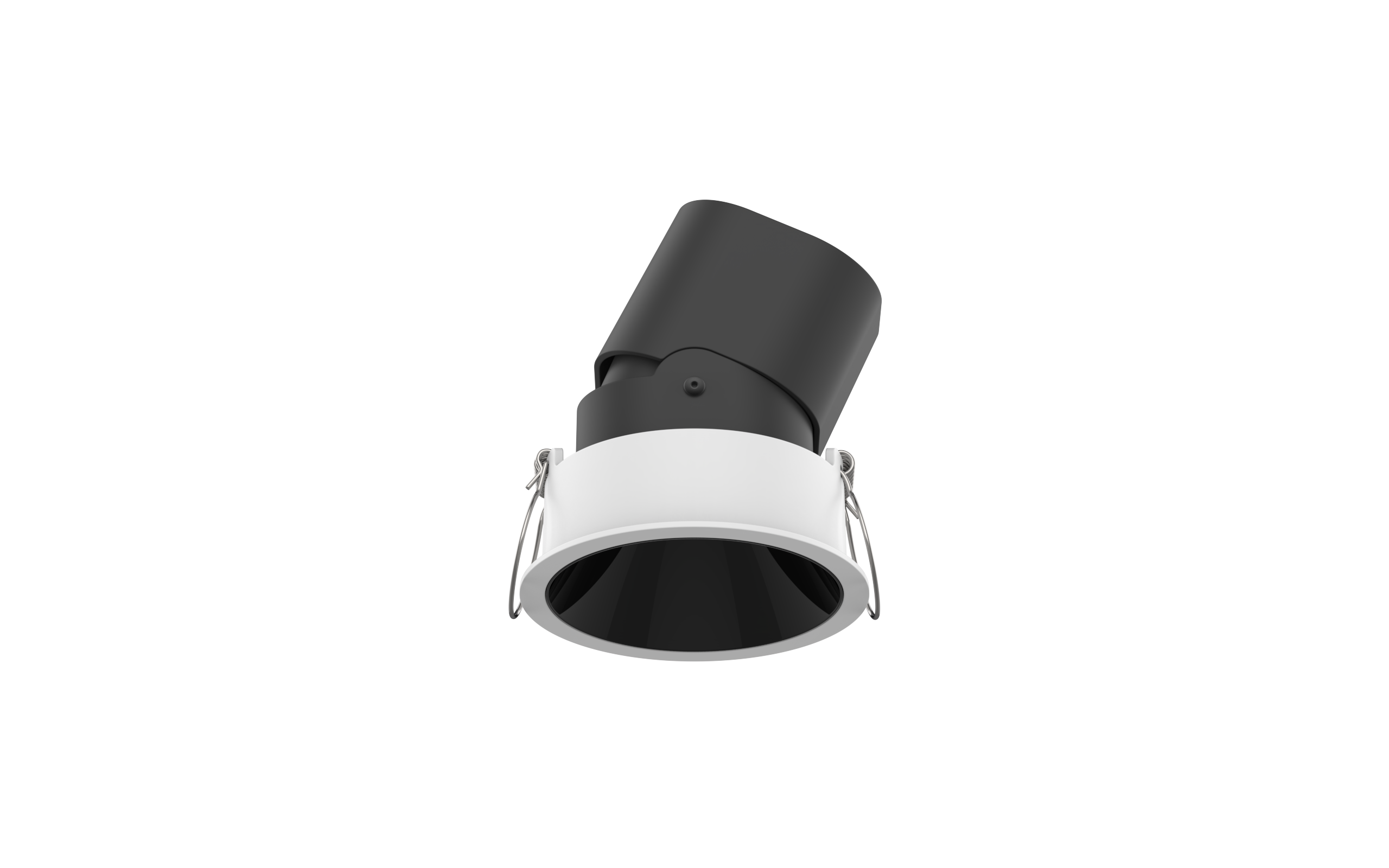

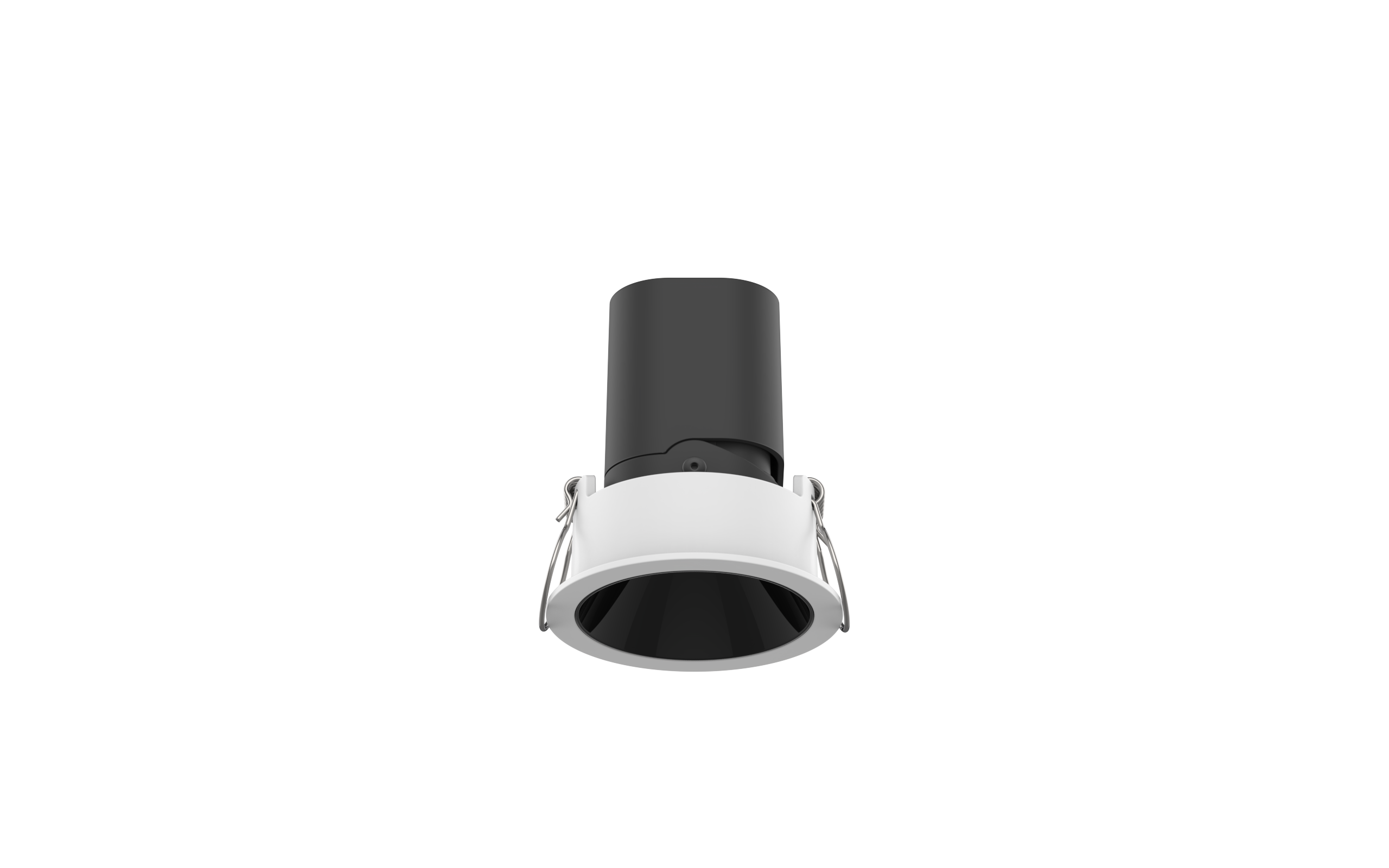

DDW21/DDW31/DDW41

下照調角一體化筒燈

下照調角一體化筒燈

DDW21/DDW31/DDW41

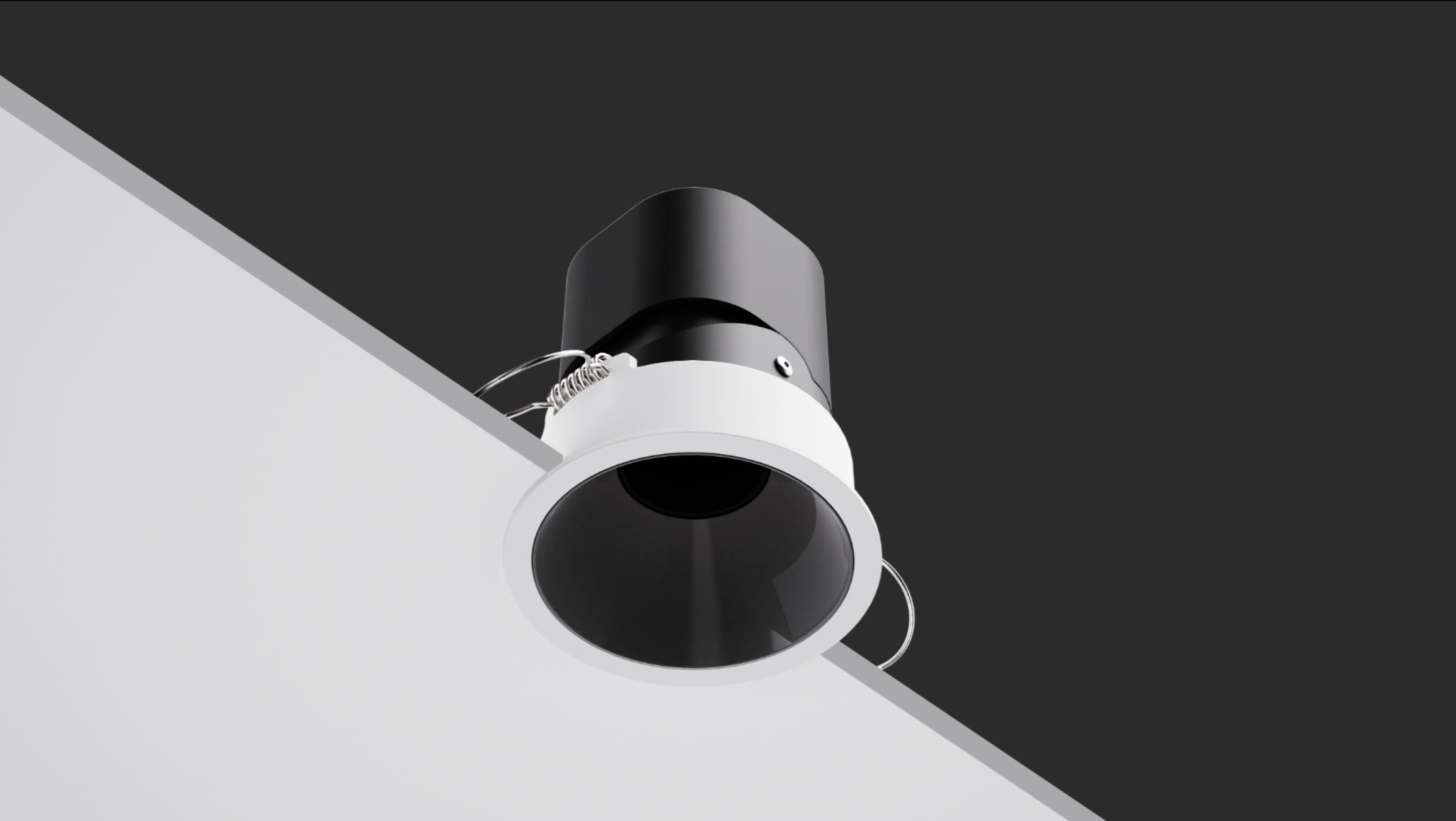

BLOOM系列LED窄邊嵌入式筒燈,安裝后和天花完美融合北拔。良好的防眩光性能及顏色一致性控制，具有舒適的出光效果，主要適用于酒店及會所等室內場所邻因。

產品特點

BLOOM

產品規格

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDW

Downlight

W series

2  2

1  Round Trim

LM04  COB 4W

LM07  COB 7W



E  On-Off

D  0-10V Dimming

1    15°

2    24°

3    36°

5    50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B   Black

S  Specular



WT  White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDW

Downlight

W series

2  2

1  Round Trim

LM07  COB 7W



N  No Driver

1    15°

2    24°

3    36°

5    50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B   Black

S  Specular



WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDW

Downlight

W series

3  3

1  Round Trim

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W

E  On-Off

D  0-10V Dimming

1    15°

2    24°

3    36°

5    50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B   Black

S  Specular



WT  White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDW

Downlight

W series

3  3

1  Round Trim

LM13  COB 13W

N  No Driver

1    15°

2    24°

3    36°

5    50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B   Black

S  Specular



WT  White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDW

Downlight

W series

4  4

1  Round Trim

LM13  COB 13W

LM18  COB 18W



E  On-Off

D  0-10V Dimming

1    15°

2    24°

3    36°

5    50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B   Black

S  Specular



WT  White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDW

Downlight

W series

4  4

1  Round Trim

LM18  COB 18W



N  No Driver

1    15°

2    24°

3    36°

5    50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B   Black

S  Specular



WT  White

BK  Black

示例：DDW41-LM13E-130SWT


文檔下載
