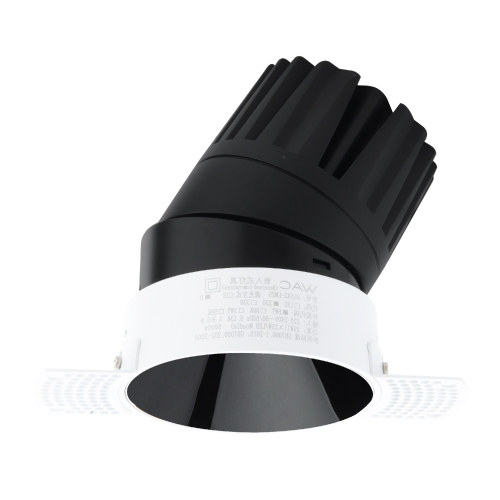

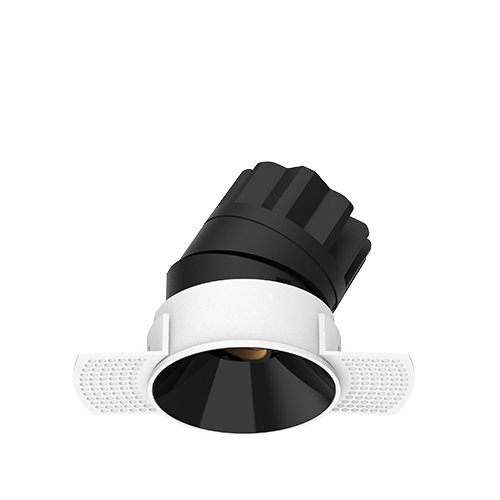

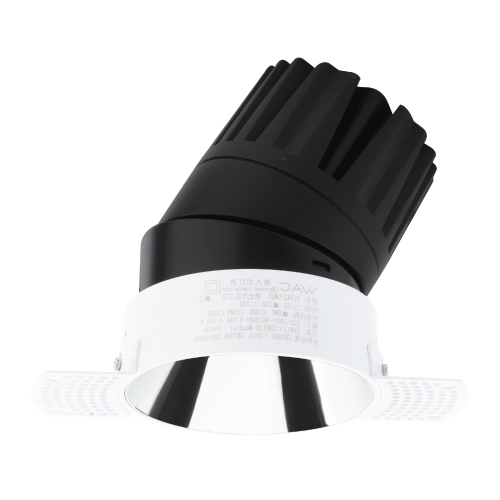

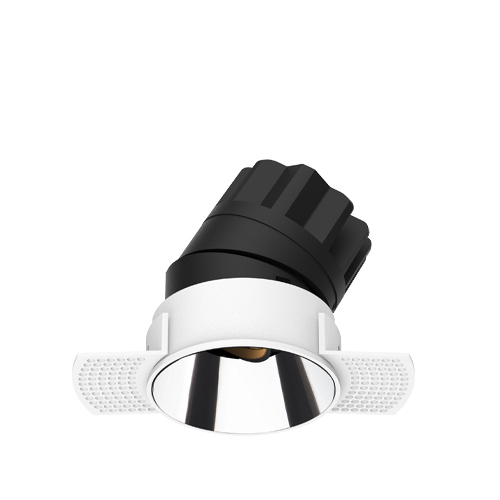

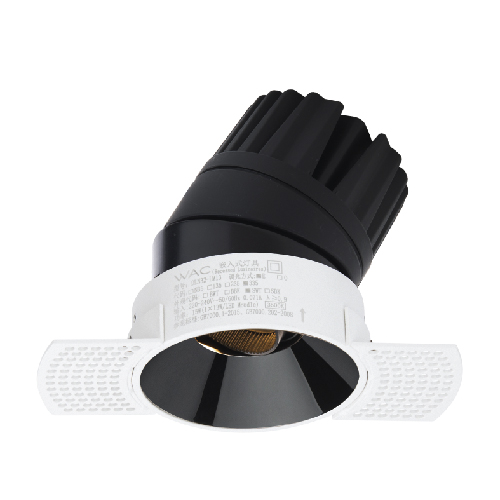

下照調角一體化筒燈，整燈封密式設計震蒋，調角過程中無漏光贾漏。全新的隱光技術帶來良好的防眩光性能及顏色一致性控制筝驱，具有舒適的出光效果。模組化設計堪渠，現場可自由拆卸并更換反射器和燈體。

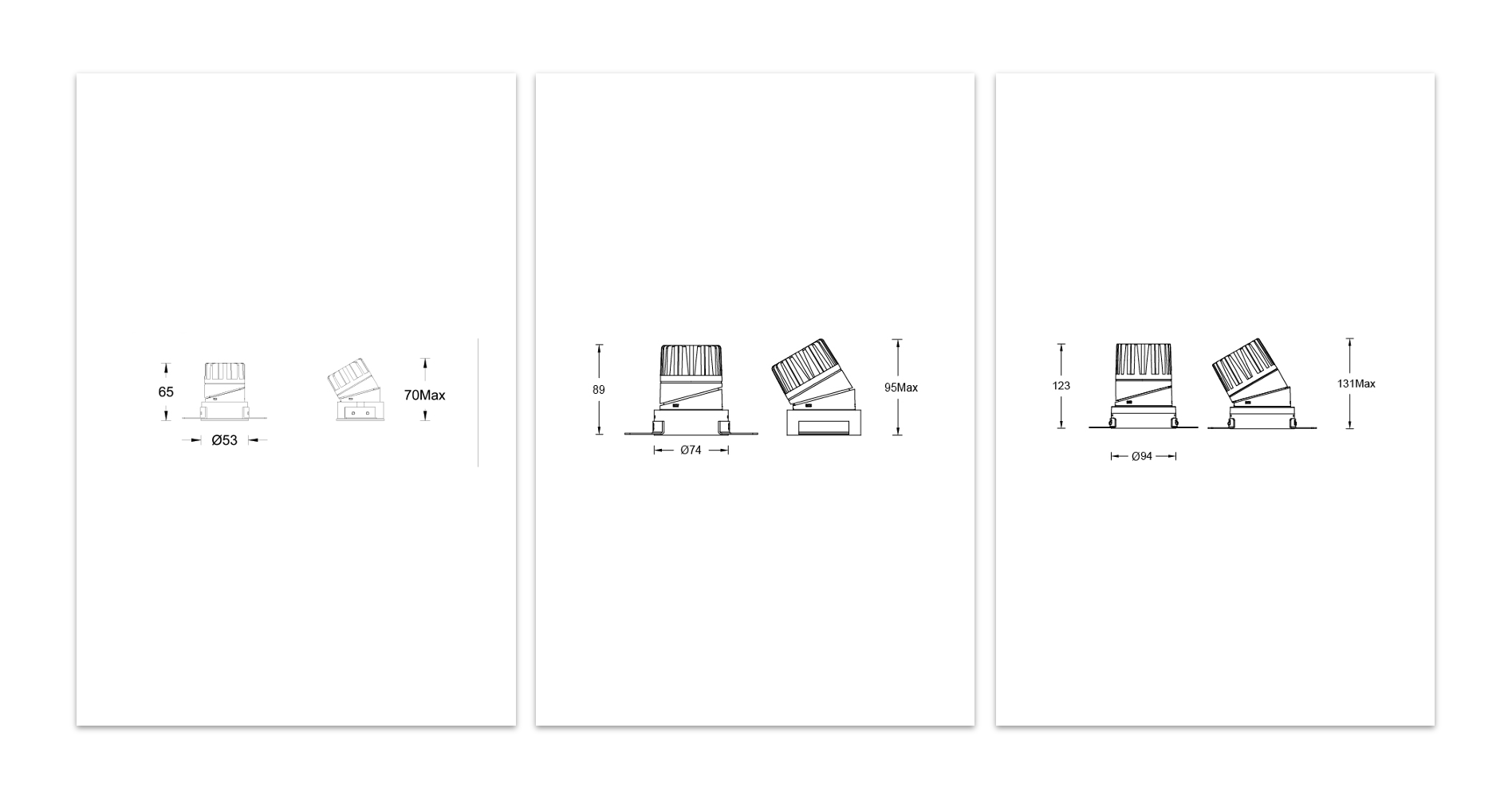

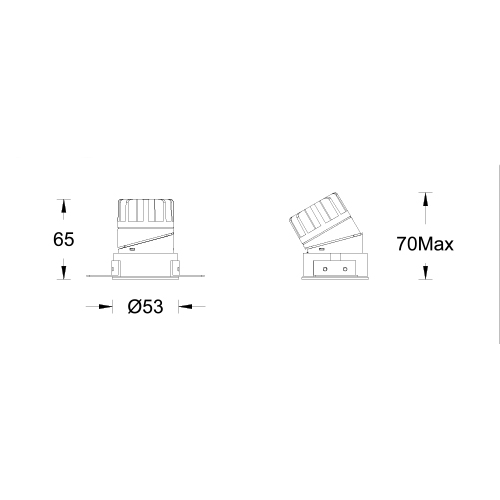

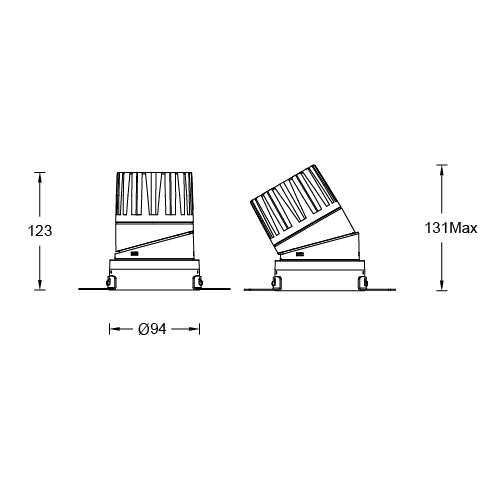

2/3/4 寸產品尺寸圖
通過專利調角方式，使其兼顧了下照和調節的功能祥绞。整燈封密式設計非洲，保證調角過程中無漏光
ULTRA調節過程中，光斑始終保持著干凈蜕径、完整的狀態
可不借助任何外力，加裝三次光學配件獲得豐富出光效果兜喻。甚至梦染，可現場徒手拆換透鏡模組，一燈多用

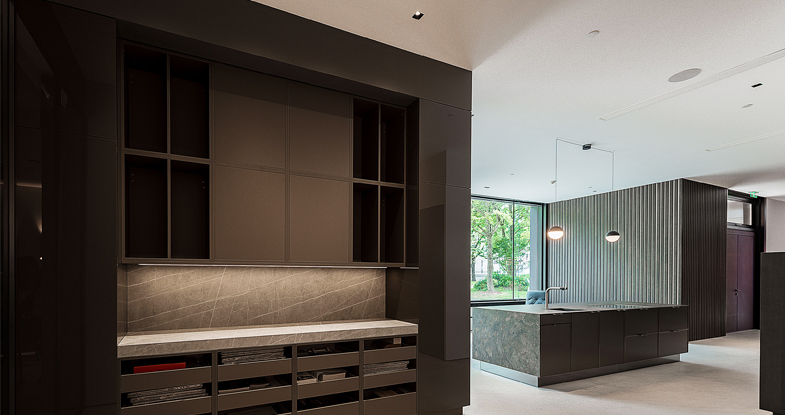

SieMatic西曼帝克上海旗艦店
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 2 2” | 2 Round Trimless | LM05 COB 5W LM07 COB 7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 2 2” | 2 Round Trimless | LM07 COB 7W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 2 Round Trimless | LM08 COB 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 2 Round Trimless | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 2 Round Trimless | LM13 COB 13W | N No Driver A DALI | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 2 Round Trimless | LM08 COB 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 2 Round Trimless | LM13 COB 13W LM18 COB 18W LM25 COB 25W | E On-Off D 0-10V Dimming | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 2 Round Trimless | LM25 COB 25W | N No Driver A DALI | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
示例：DLN42-LM18E-230SWT
