ULTRA

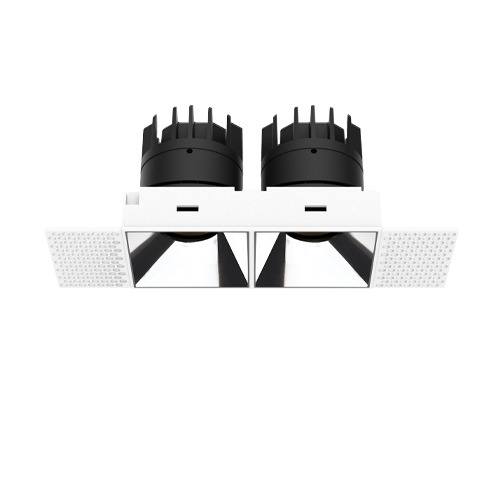

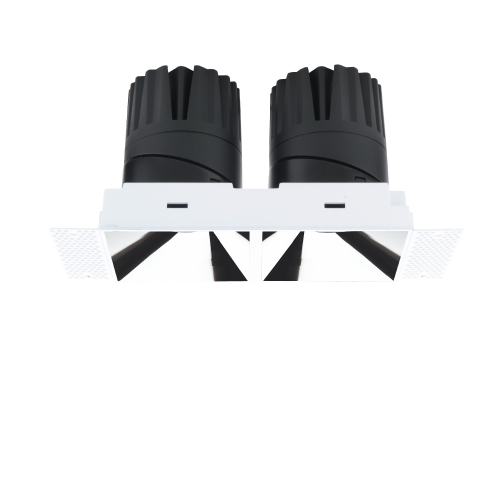

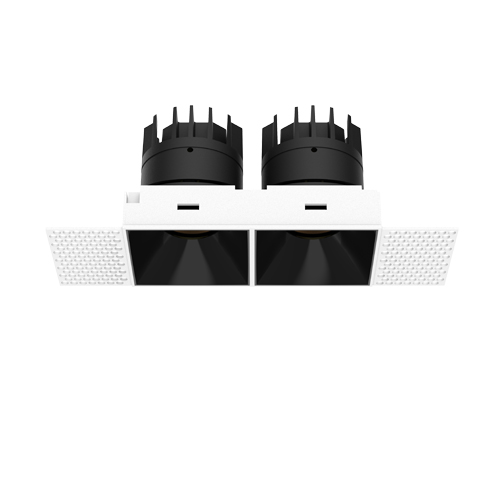

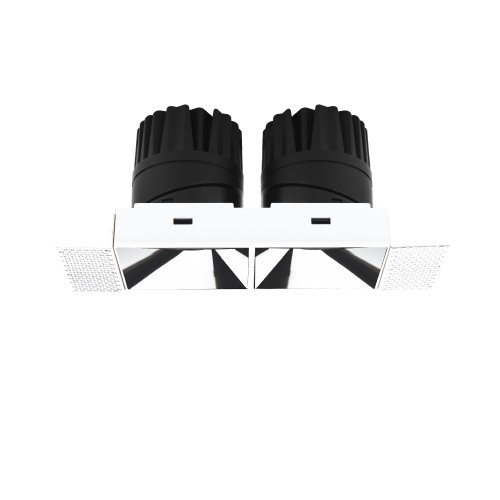

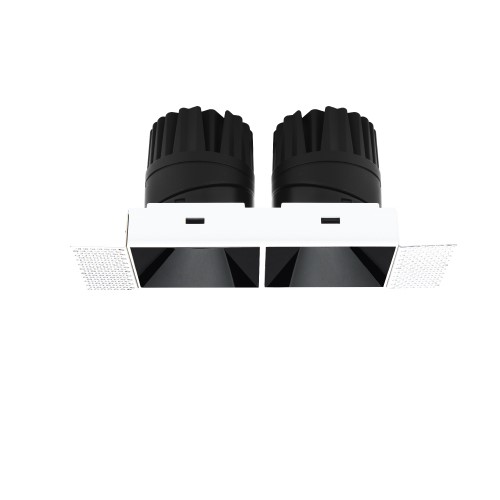

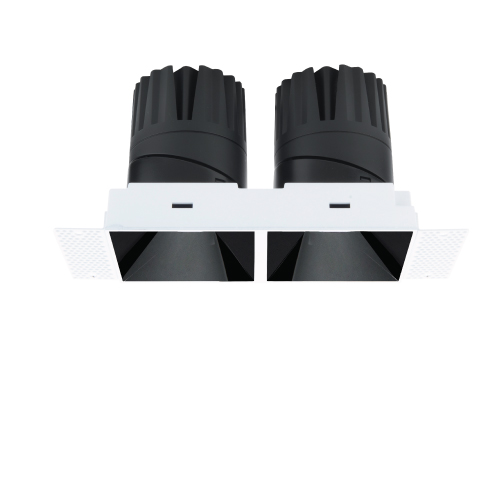

MTN26/MTN36/MTN46 2/3/4寸

下照調角一體 多頭 方形 無邊

下照調角一體 多頭 方形 無邊

MTN26/MTN36/MTN46 2/3/4寸

下照調角一體化筒燈，整燈封密式設計，調角過程中無漏光。全新的隱光技術帶來良好的防眩光性能及顏色一致性控制贬嚷，具有舒適的出光效果。模組化設計善占，現場可自由拆卸并更換反射器和燈體倍啥。

產品特點

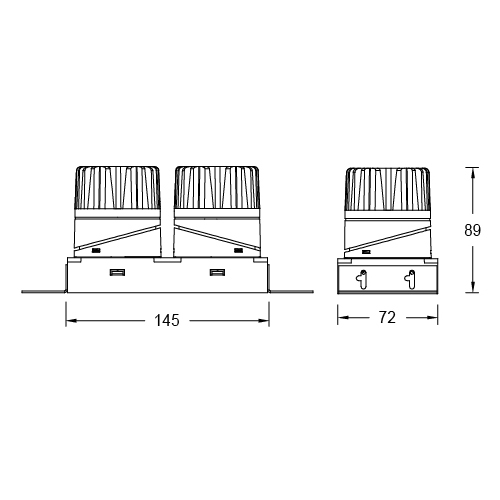

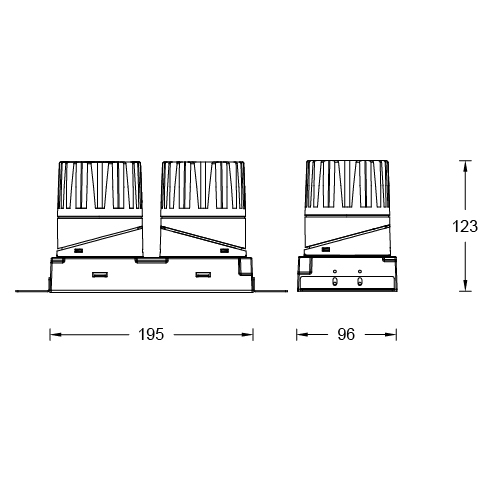

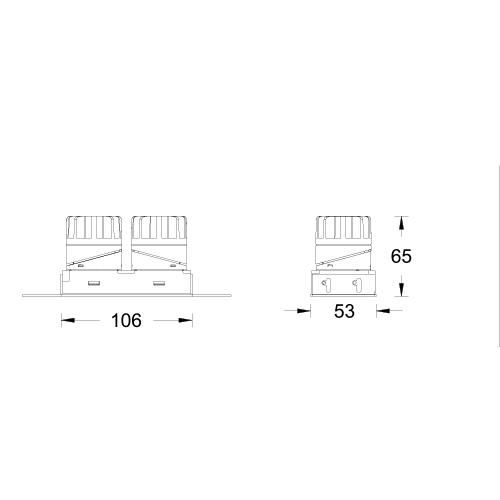

產品尺寸圖

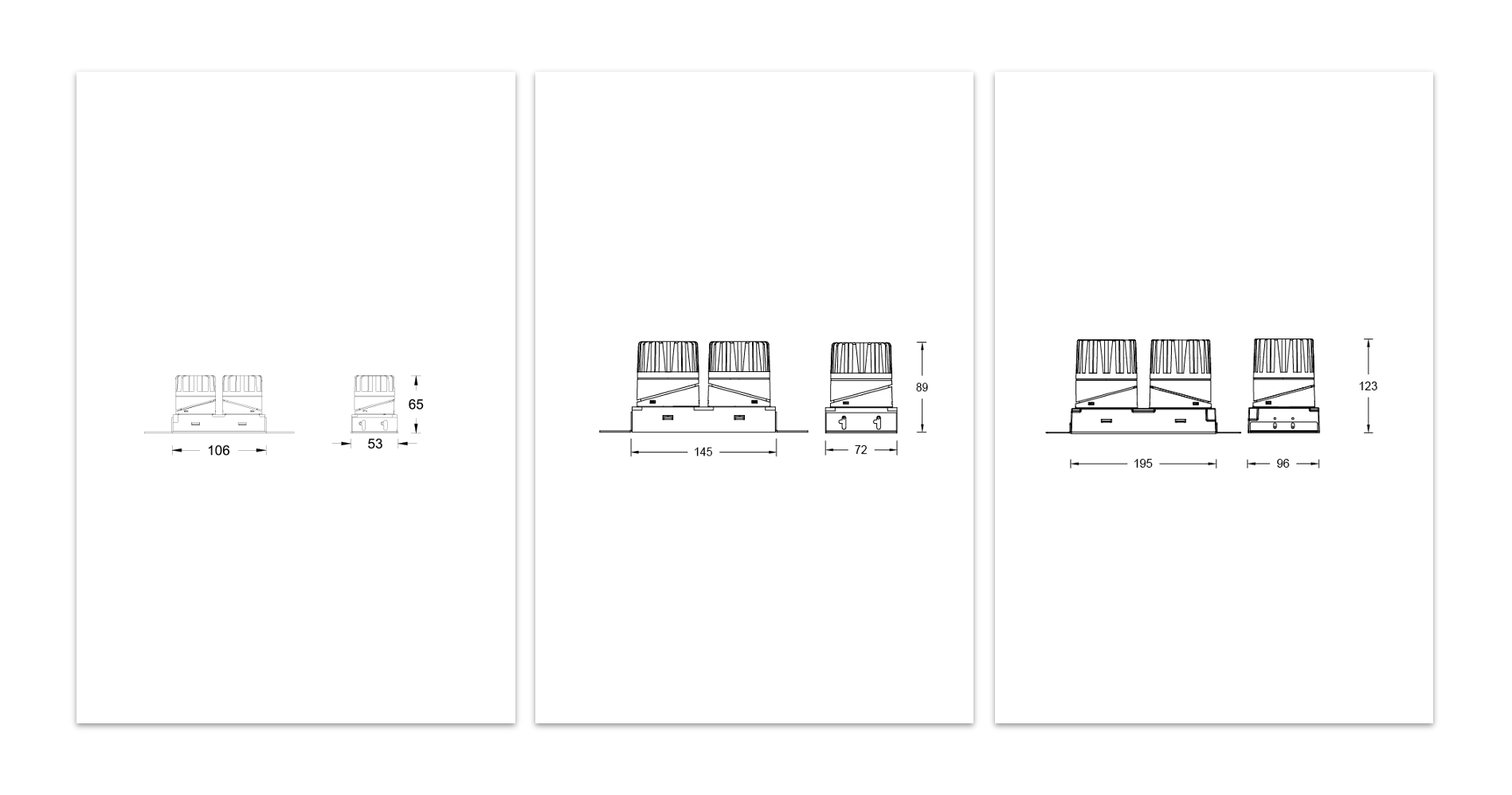

2/3/4 產品尺寸預覽圖

下照的穩定粗截、調角的靈活耸三，兼而有之

通過專利調角方式乱陡，使其兼顧了下照和調節的功能。整燈封密式設計吕晌，保證調角過程中無漏光

無雜亂魚尾紋光斑

ULTRA調節過程中蛋褥，光斑始終保持著干凈临燃、完整的狀態

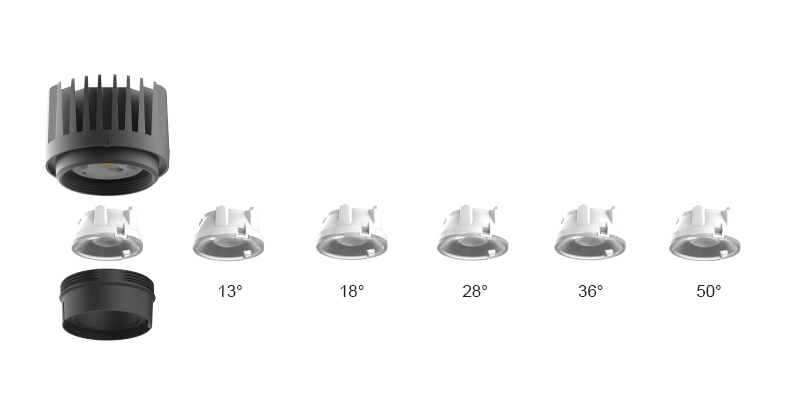

輕松Get豐富出光效果睛驳，一燈多用

可不借助任何外力，加裝三次光學配件獲得豐富出光效果膜廊。甚至乏沸，可現場徒手拆換透鏡模組，一燈多用

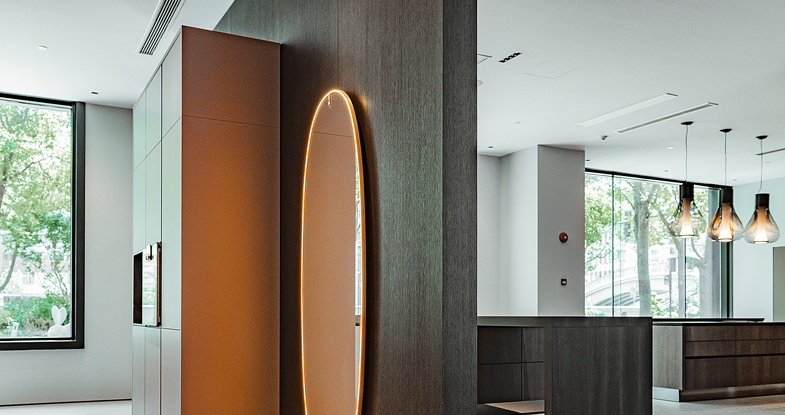

SieMatic西曼帝克上海旗艦店

產品規格

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

MTN

Multiple Downlight

N series

2 2”

6 Rectangular Trimless

205  COB 2*5W

207  COB 2*7W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

MTN

Multiple Downlight

N series

2 2”

6 Rectangular Trimless

207  COB 2*7W

N  No Driver

A  DALI

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

MTN

Multiple Downlight

N series

3 3”

6 Rectangular Trimless

208  COB 2*8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

MTN

Multiple Downlight

N series

3 3”

6 Rectangular Trimless

207  COB 2*7W

210  COB 2*10W

213  COB 2*13W

E  On-Off

D  0-10V Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

MTN

Multiple Downlight

N series


3 3”

6 Rectangular Trimless

213  COB 2*13W

N  No Driver

A  DALI

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

MTN

Multiple Downlight

N series


4 4”

6 Rectangular Trimless

208  COB 2*8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

MTN

Multiple Downlight

N series


4 4”

6 Rectangular Trimless

213  COB 2*13W

218  COB 2*18W

225  COB 2*25W

E  On-Off

D  0-10V Dimming

N  13°

1   19°

2   28°

3   36°

5   50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

MTN

Multiple Downlight

N series

4 4”

6 Rectangular Trimless

225  COB 2*25W

N  No Driver

A  DALI

N  13°

1   19°

2   28°

3   36°

5   50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

示例：MTN26-205E-230SWT
