ELANA 系列筒燈冀烘，專注酒店客房領(lǐng)域。多色溫，多角度蜒简，多面框可選。采用透鏡配光，保證出光精準的同時，利用階梯防眩技術(shù)鸽拱，帶來舒適的光環(huán)境。
JW萬豪侯爵酒店
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DLF Downlight F series | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W | E On-Off D 0-10V Dimming | 27 2700K 30 3000K 40 4000K | 1 18° 2 24° 3 36° | B Black | WT White |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DLF Downlight F series | 3 3” | 3 Round Trim(IP44出光面) | LM07 COB 7W LM10 COB 10W | E On-Off D 0-10V Dimming | 27 2700K 30 3000K 40 4000K | 2 24° 3 38° | B Black | WT White |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DLF Downlight F series | 3 3” | 5 Round Trim(IP44出光面) | LM07 COB 7W LM10 COB 10W | E On-Off D 0-10V Dimming | 27 2700K 30 3000K 40 4000K | 1 15° 2 24° 3 36° | B Black | WT White |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |

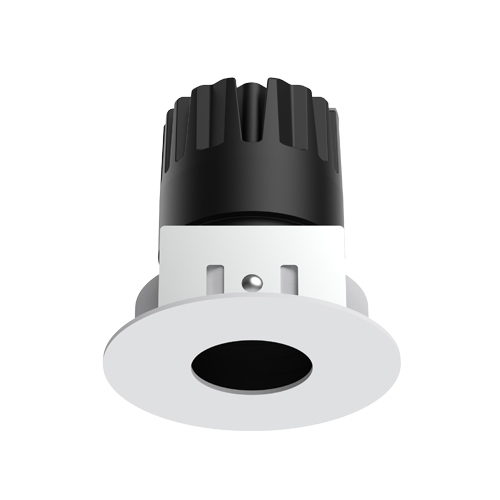

DLF Downlight F series | 3 3” | P Pin hole Round Trim(IP44出光面) | LM07 COB 7W LM10 COB 10W | E On-Off D 0-10V Dimming | 27 2700K 30 3000K 40 4000K | 1 15° 2 24° 3 38° | B Black | WT White |
示例：DLF31-LM10E-302BWT
