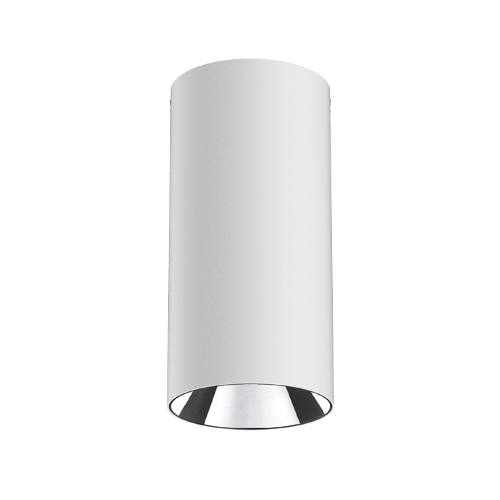

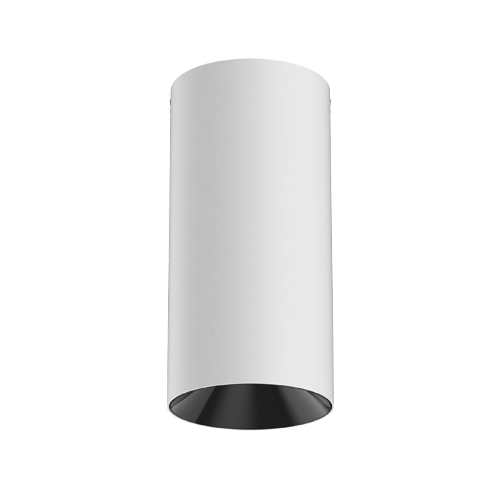

燈具采用模組化設計辙喂，現場可自由拆卸并更換反射器和燈體，從而實現多種規格及出光方式的自由切換。全新的隱光技術賦予良好的防眩光性能及顏色一致性控制，具有舒適的出光效果，主要適用于酒店鬓照，別墅及商業空間等室內場所。
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
SLN Surface Mounted N series | 3 3” | 2 Round Trimless | LM08 COB 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
SLN Surface Mounted N series | 3 3” | 2 Round Trimless | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
示例：SLN32-LM07E-N30SWT
注：8°、13°和18°出廠默認帶蜂窩格柵
