外形設計精致，由鋁合金壓鑄制成燈身莫瞬，無可視散熱器，內置多顆HP LED 發(fā)光模組优床，提供兩種常用色溫及優(yōu)秀的顯色性配置、并具有多種光束角的選擇誓焦。

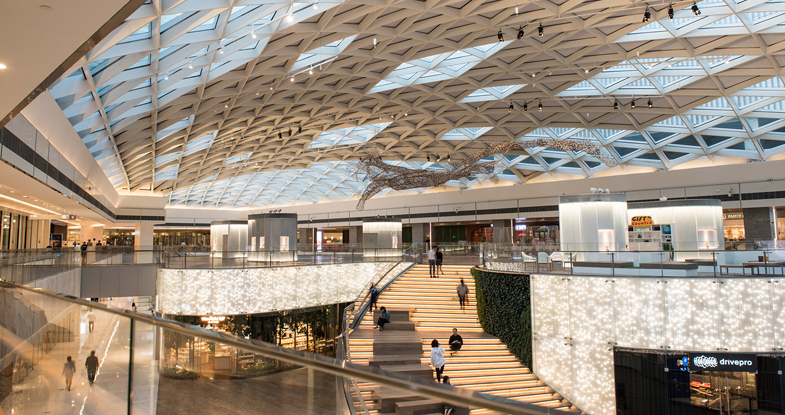

深圳大涌華潤萬象城
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL25S Swallow II | LD06 LED 6W LD09 LED 9W | O On-board D 0-10V | S 7° 1 14° 2 20° 3 30° 4 40° E 10°*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL26S Swallow II | LD09 LED 9W | O On-board D 0-10V | V 5° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL26S Swallow II | LD12 LED 12W LD18 LED 18W LD24 LED 24W | O On-board D 0-10V | S 7° 1 14° 2 20° 3 30° 4 40° E 10°*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL27S Swallow II | LD15 LED 15W | O On-board D 0-10V | V 5° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL27S Swallow II | LD30 LED 30W LD36 LED 36W LD45 LED 45W | O On-board D 0-10V | S 7° 1 14° 2 20° 3 30° 4 40° E 10°*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
示例：TL27SLD36-O-2930WT
